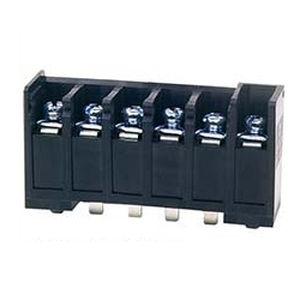

Printed circuit board terminal block DG1450H-Bscrew connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
10 mm²
(0.02 in²)- Current
45 A
- Nominal voltage
600 V, 800 V
Description
Electrical
Standard
UL
IEC
Wire range
22-8AWG
10.0mm2
Withstand Voltage
AC3500V/Min
Insulation Resistance
5000MΩ/DC500V
Mechanical
Max.Torque Value
2.0N.m 17.5Lb.in
Ambient temperature
-40°C~+140°C
Dimensions
Pitch
14.5mm(.571")
Poles
2P-14P
Material
Housing
PBT+20%GF,UL94V-0
Terminal
Brass,1.5t,Tin-Plated
Screws
Steel,M5 Ni-Plated
