Current transformer ASK & ASR
instrumentencapsulatedfor industrial applications

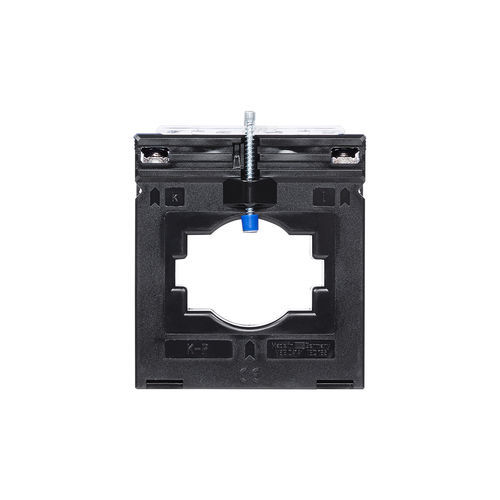

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications - image - 2

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications - image - 3

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications - image - 4

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications - image - 5

Current transformer - ASK & ASR - DEIF - instrument / encapsulated / for industrial applications - image - 6

Add to favorites

Compare this product

Characteristics

Type

current, instrument

Configuration

encapsulated

Applications

for industrial applications

Mounting

floor-standing

Other characteristics

toroidal, busbar passing, cable passing

Primary voltage

720 V, 1,200 V

Primary current

Max.: 7,500 A

Min.: 40 A

Secondary current

1 A, 5 A

Description

Part of DEIF's current transformer range, these measuring transformers convert high current into lower nominal current value, thus making it possible to use instruments and relays with standardised values of rated current. Part of DEIF’s current transformer range, these measuring transformers convert high current into lower nominal current value, thus making it possible to use instruments and relays with standardised values of rated current. DEIF offers 41 different physical sizes of the measuring transformers. The range is suitable for cables and several busbar combinations and positions. In order to ensure short delivery time, we always keep transformers in stock. ASR •Designed for round cables. •Primary current: 40 to 600 A. •Burden from 1.0 to 10 VA. ASK •Designed for round cables and busbar. •Primary current: 40 to 7,500 A. •Burden from 1.0 to 30 VA.
