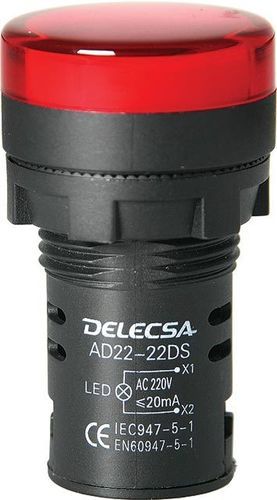

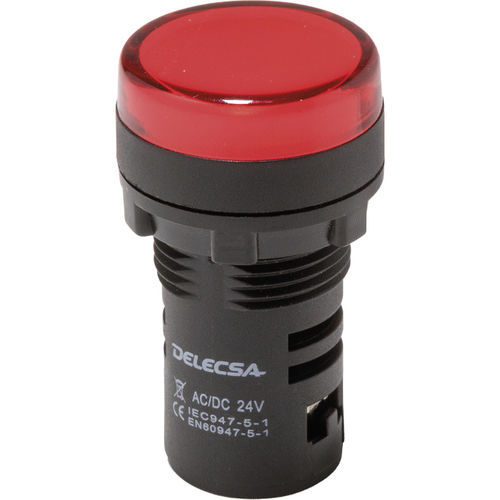

LED indicator light D-7022

panel-mountIP65AC/DC

Series
Multi-LED Pilot Light Series 7000 (panel mounting with locking nut)

Description
Pilot LED with multi-chip technology providing a clear visual signal in industrial environments. It does not generate interference and can operate continuously without heating, ensuring reliable performance. Particularly suitable for industrial machinery, assembly lines, control panels, drive panels, elevators and hoists. Note: Bicolor Ø22 (reference D-7022).

References

• D-7000
• D-7001
• D-7016
• D-7022
• D-7030
• D-7031

General characteristics
Mounting: Panel
Mounting hole: 16 mm / 22 mm
Connection: Faston 4.8 mm; Terminals
Voltages: AC/DC 24V; AC 220V
Material: Polycarbonate (PC)
Protection: Front IP65
Colors: Red, Green, Amber, White, Blue
Type of lamp: Multi-chip LED

Characteristics / Technical specifications

• Mounting: Panel
• Mounting hole: 16 mm / 22 mm
• Connection: Faston 4.8 mm; Terminals
• Voltages: AC/DC 24V; AC 220V
• Material: Polycarbonate (PC)
• Front protection: IP65
• Available colors: Red, Green, Amber, White, Blue
• Technology: Multi-chip LED (no interference, continuous operation)
• Applications: Industrial machinery, production lines, control panels, elevators, hoists
• Note: Bicolor Ø22 (reference D-7022)
