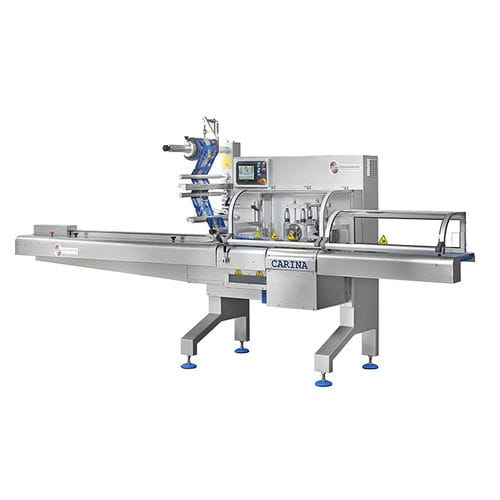

Automatic packaging machine CARINA 500 E

horizontalflow-packwith sealing

Electronic Horizontal Flow-Pack machine complete with rotary sealing jaws and Film Roll Holder from the top, composed of: • Main machine structure in painted steel  RAL 9006 and stainless steel AISI 304  guards; • Cantee-lever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area; • 2100mm long infeed conveyor (usable loading space 1400mm approx.) complete with stainless steel AISI 304 deck plates and side guards; • Food grade nylon pushers and pushers supports; • Longitudinal fin seal assembly carried out by 2 sets of independent fin wheels diameter 120mm. First set is for pulling , second one is for sealing; • One up-rotary motion sealing assembly with 240mm wide jaws and transverse or longitudinal sealing pattern complete with inclined cutting knife assembly. Sealing surface width 12,5mm; • Electronic torque limiter on transverse sealing jaws; • Motorization by means of 3 brushless motors ,one for the infeed conveyor, one for fin wheels assembly and one for transverse jaws assembly; • One self centering cantilever film roll holder 500mm wide from the top; • Discharge conveyor belt one meter long; • Shock proof Plexiglas safety guards with safety micro switches; • Color touch screen with the possibility to store up to 99 working programs; • One adjustable or one fixed forming box; • Machine direction from left to right as shown on general catalog; • Pneumatic components: FESTO; • Machine built in accordance with CE standards; • Voltage: 400V , 3PH , T+N
