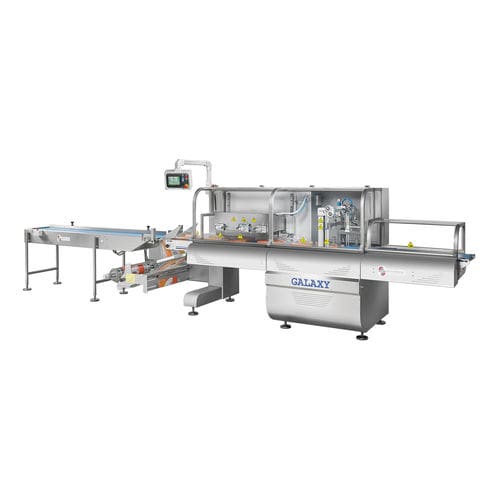

Automatic packaging machine GALAXY 700 E

horizontalflow-packwith sealing

ELECTRONIC HORIZONTAL FLOW-PACK MACHINE COMPLETE WITH BOX MOTION SEALING JAWS AND FILM ROLL HOLDER FROM THE BOTTOM, COMPOSED OF: • Main machine structure in painted steel RAL 9006 and stainless steel AISI 304 guards ; • Cantilever style construction with all the mechanical transmissions positioned behind the machine separated from the product flow area; • 2600mm long infeed conveyor (usable loading space 2200mm approx.) complete with stainless steel AISI 304 deck plates and side guards; • Food grade nylon pushers and pushers supports; • Longitudinal fin seal assembly carried out by 3 sets of independent fin wheels diameter 120mm. First set is for pulling , second one is for sealing and third one is for driving pre-heating system and cooling devices. Pneumatic opening of the fin wheels; • One box motion sealing assembly with 350mm wide jaws complete with guillotine cutting knife assembly; • Products conveying band under the fin wheels assembly; • Electronic torque limiter on transverse sealing jaws; • Motorization by means of 5 brushless motors  ,one for the infeed conveyor, one for fin wheels assembly ,one for transverse jaws assembly, one for in-feed conveyor and one for belt under the fin wheels assembly; • One self-centering cantilever film roll holder 700mm wide from the bottom; • Motorized film unwinding rubber roller; • Discharge conveyor belt one meter long with independent motor controlled by inverter; • Shock proof Plexiglas safety guards with safety micro switches • Color touch screen with the possibility to store up to 99 working programs; • One adjustable forming box in width; • Machine direction from left to right as shown on general catalog;
