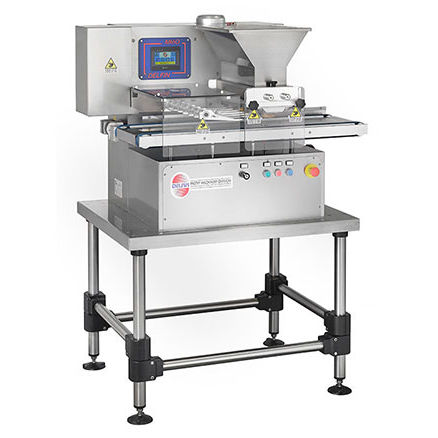

Biscuit depositor MINO 400-B

multi-headbench-top

N° 01 BISCUIT DEPOSITING MACHINE MOD. MINO 400-B with “new colour Touch Screen” control panel & “modular” structure. Scope of the supply : Biscuit depositing machine to produce a wide variety of shapes within the limits and according to the standard kit of nozzles. Functional and constructive characteristics Bench machine (optional, stainless steels trolley with 4 castors) • Main frame is constructed in anti corodal aluminium and stainless steel Aisi 304 • Tray transport conveyor 1mt • Standard rollers extruding head for semi-dense dough • Fixed nozzle plate with 6 exits complete of n.2 standards nozzles kits • Rotary nozzle plate assembly (Optional) complete of n.2 standard nozzles kits Pump head for semi-liquid dough (Optional) Computer with new Graphic display “Touch Screen”, intuitive control panel EC standards Machine suitable for trays 40 x 60 x H-2 cm, manual loading instruction manual reduced machine dimensions, considering modular structure Weight: indicative 170/200 Kg (gross 250kgs - to be confirmed at order)
