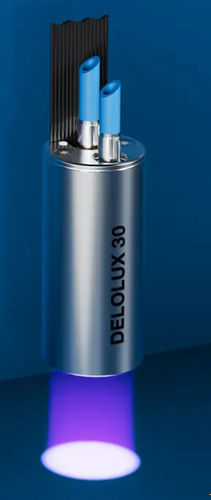

Lamp light source DELOLUX 301

LEDUVadjustable wavelength

LED line lamp for especially intensive curing processes of adhesives in the production of small electronic components. DELOLUX 301 is suitable for highly automated processes in small and narrow production lines. The lamp thus offers the highest curing speeds and great flexibility for integration into production systems. The DELOLUX 301 can be operated as a single head or seamlessly combined to form a larger array. As the lamp heads can be lined up seamlessly in at least three directions, customized – yet homogeneous – irradiation areas can be implemented. The LED lamp can thus be perfectly adapted to customer-specific production conditions and flexibly integrated into fully automated production lines. • Shortest cycle times thanks to the highest intensities • Flexible process thanks to the largest possible working distances • Long useful life of the lamp heads of more than 20,000 hours • Consulting and customer-specific solutions from a single source: high-tech adhesives, dispensing systems, and curing lamps Technical Data: head dimensions: 42,7 mm x 13mm x 67,2 mm Light exit area: 38,7 mm x 8,45 mm wavelengths / Typical intensity: 365 nm: ≥ 13.500 mW/cm² @ 2 mm 400 nm: ≥ 22.500 mW/cm² @ 2 m Cooling mechanism: External cooling profile (liquid or passive) Please note: We supply hightech adhesives exclusively to manufacturing trades and industries. There is no direct sales to private customers as well as small and medium-sized enterprise (SME).
