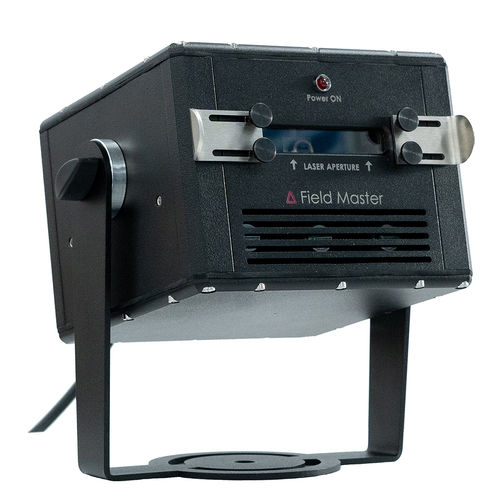

Positioning laser projector Delta Field Master

for assemblyfor markingcontour

Product overview
The Delta Field Master is an industrial laser line projector designed to replace tape or paint for durable floor marking in high-traffic, dusty or harsh environments. Easy to install and align, it offers adjustable projection length and presettable line thickness for indoor and outdoor industrial applications. Classified as laser class 3R, it delivers bright, long-distance lines and is suitable for pedestrian, forklift and dock area demarcation as well as integration into machinery.

Key features

• Very bright diode laser lines with long service life (MTTF >30,000 h)
• Adjustable line thickness 10–70 mm and selectable projection angles
• IP65-rated enclosure with TEC cooling and microprocessor control
• Control input: 5–24 V DC via 4-pin M12 industrial connector
• Available with multiple wavelengths and power options to match application needs
• Designed for continuous operation and OEM integration

Technical specifications
Optical / Laser:
Wavelengths (nm): 530, 638, 445
Laser power (mW): ≤1000, ≤1500 (model dependent)
Laser class: 3R
Technology: Diode

Electrical specifications:
Input voltage: 90–265 VAC, 50/60 Hz
Input current: 1.8 A @115 V / 1 A @230 V
Control signal (laser on/off): 5–24 V DC via 4-pin M12 industrial connector
Temperature protection: Yes
Fuse: 2 A @230 V (5×20 mm)
Connection: Metal gland
Power cable length: 5 m / 10 m / 15 m / 20 m (on request)

Optical projection:
Projection lens angles: 30°, 45°, 60°, 90°, 110° (on request)
Focus: Manual (on request)
Line thickness: 10–70 mm (adjustable)
DOE projection options: Circle, Cross, Grating, Square (on request)

Mechanical / Environmental:
Dimensions (mm): 182 x 160 x 117
Safety ring: 2 × DIN 580
Weight: 5 kg
Protection rating: IP65

Line length examples (approx.):
Angle 45° — Distance 5 m — Line length ≈ 4.25 m
Angle 60° — Distance 5 m — Line length ≈ 5.80 m
Angle 90° — Distance 5 m — Line length ≈ 10 m
Angle 110° — Distance 5 m — Line length ≈ 15 m

Notes
Choosing a larger projection angle increases the projected line length. Specify wavelength, power and lens angle to suit ambient conditions and visibility requirements.

Additional specifications

• Expected lifetime (MTTF): >30,000 hours
• Operating temperature: -40°C to +45°C
• Storage temperature: -40°C to +85°C
• On/off control: 5–24 V DC via 4-pin M12 connector
• Dimensions: 182 x 160 x 117 mm
• Weight: 5 kg
• Protection rating: IP65
