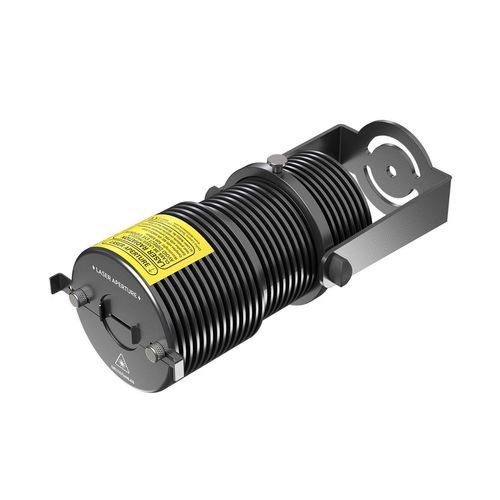

Positioning laser projector Delta FieldLAS®

for error preventionfor optimization of the operationsfor marking

Overview
The Delta FieldLAS® is a precision industrial laser line projector engineered to replace conventional floor marking methods. It projects a bright, high-contrast laser line on horizontal or vertical surfaces, offering a maintenance-free alternative to paint, tape or printed signage in dusty, wet or high-traffic production environments.

Applications
Designed for continuous-duty operation and system integration in production, logistics and safety-critical areas. Typical applications include dynamic work stations, AGV/AMR paths, pedestrian/forklift separation zones and hazardous-area indication.

Key features

• Microprocessor control for configurable performance and integration
• Diode laser technology delivering solid, uniform lines
• Available wavelengths: 525 nm (green) and 638 nm (red)
• Expected lifetime >20,000 hours (MTTF)
• IP67 protection for harsh environments
• Serviceable laser source with OEM spare parts and 2-year warranty options
• Manual focus option and multiple projection angles (90°, 110°, 120°; other angles available)

Technical specifications
Wavelengths: 525 nm (green), 638 nm (red); Laser power: ≤1200–≤1400 mW depending on configuration; Laser class: 2, 3R (installation-dependent reduction to class 1 possible); Technology: diode laser; Operating temperature: -40°C to +40°C; Storage temperature: -40°C to +85°C; Expected lifetime (MTTF): >20,000 hours.

Electrical specifications
Input voltage: 12–24 V DC; Max input current: 2000 mA; Control input (laser on/off): 5–24 V DC via 4-pin M12 industrial connector (Pin 2 opto-isolated +, Pin 4 opto-isolated -); Protections: polarity reversal and overvoltage protection; Power cable length: 5 m; Optional power supplies: 24 V/36 W adapter (GST-36E24-P1J) or switching supply (LPV-35-24).

Optical specifications
Projection angles: 90°, 110°, 120° (other angles/options available); Focus: manual (on request); Line thickness: approx. 40–80 mm depending on optics and distance.

Mechanical specifications
Dimensions: Ø80 x 175 ±5 mm; Weight: 1.8 kg; Ingress protection: IP67.

Line length (approx.) by beam angle and distance
Angle 45° | Distance 5 m | Line length ≈ 4.25 m; Angle 60° | Distance 5 m | Line length ≈ 5.80 m; Angle 90° | Distance 5 m | Line length ≈ 10 m; Angle 110° | Distance 5 m | Line length ≈ 15 m.

Characteristics / technical data

• Model: Delta FieldLAS®
• Manufacturer: Delta Lasers Technology
• Wavelengths: 525 nm (green), 638 nm (red)
• Laser power: up to ≤1400 mW (config-dependent)
• Laser class: 2, 3R (install-dependent reduction to class 1 possible)
• Technology: diode laser
• Input voltage: 12–24 V DC
• Max input current: 2000 mA
• Connector: M12 4-pin industrial
• Ingress protection: IP67
• Dimensions: Ø80 x 175 ±5 mm
• Weight: 1.8 kg
• Operating temperature: -40°C to +40°C
• Expected lifetime (MTTF): >20,000 hours
