CW laser module Delta Spectrum LAB

solid-statemultiple-wavelengthindustrial

Product overview

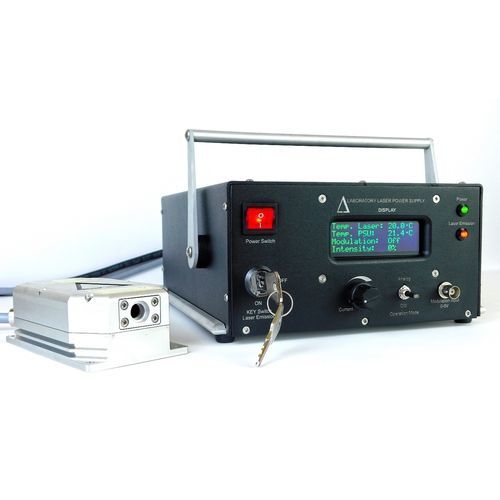

Delta Spectrum LAB is a TEC-cooled laboratory laser series offering beam quality and selectable output powers from 5 mW up to 6000 mW. Models feature user-adjustable output, digital/analog input modulation and multiple wavelength options suitable for research, microscopy and industrial alignment.

Key features

• Output power range: 5–6000 mW (models: ≤5, ≤50, ≤80, ≤100, ≤120, ≤200, ≤500, ≤1000, ≤6000 mW)
• Multiple wavelength options (405–1064 nm)
• TEC thermoelectric cooling and overheat protection (IP54)
• Modulation: digital/analog input, 0 / 100 / 200 / 500 kHz; modes CW / ANALOG / PWM
• User-adjustable operation current (POT, displayed in %)
• Includes LAB power supply; key-lock safety and emission/power indicator

Applications

• Research laboratories and spectroscopy
• Microscope illumination and flow cytometry
• Industrial alignment, metrology and machine integration

Technical specifications
Output Power (mW): ≤5, ≤50, ≤80, ≤100, ≤120, ≤200, ≤500, ≤1000, ≤6000
Wavelength (nm): 405, 445, 462, 505, 515, 520, 530, 637, 638, 808, 940, 1064 (±5 nm tolerance)
Projection: Dot, Circle (60°), DOE element, Powell Lens (30°/60°/90°/custom)
Beam height from base plate: 30 mm
Cooling: TEC (thermoelectric)
Protection & Safety: Overheat protection, IP54, Key lock, Emission and power indicator
Modulation frequency (kHz): 0 / 100 / 200 / 500
Operation modes: CW / ANALOG / PWM
Operation current: User POT-adjustable (displayed in %)
Operating temperature: 10–45 °C
Input power (power supply): 110–240 VAC, 50 Hz, 16 A
Laser head dimensions (mm): 71 x 124 x 41
Power supply dimensions (mm): 226 x 252 x 105
