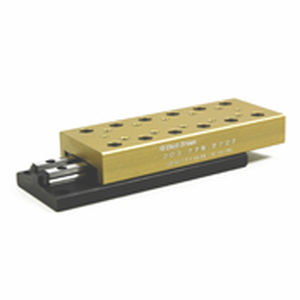

Crossed roller linear slide NBT-2125A-80aluminium
Add to favorites
Compare this product
Characteristics
- Type
- crossed roller
- Other characteristics
- aluminium
- Load
198 lb
(89.8 kg)- Stroke
3.2 in
Description
Crossed Roller Slide Tables (Aluminum)
Family: NBT-2000A
Model: NBT-2125A-80
Price: $ 415.00
All dimensions in inches unless otherwise specified
Mounting Dimensions Carriage
Spacing N : 0.689
Spacing P : 0.591
Thread J : 6-32
Depth K : 0.315
Base
Spacing R : 0.197
Spacing S : 1.181
C-Bore D : 0.241
C-Bore d : 0.149
Depth h : .145
Profile Dimensions
Height A +/- .005 (0.13) : 0.827
Width B +/- .010 (0.25) : 1.575
Base Thickness C : 0.256
Catalogs
Other DELTRON products
Crossed Roller Tables (Aluminum & Steel)
