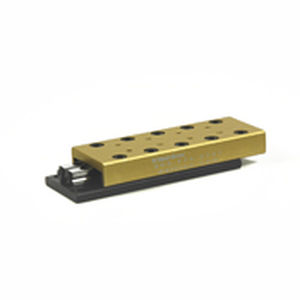

Crossed roller linear slide NBT-1065Aaluminium
Add to favorites
Compare this product
Characteristics
- Type
- crossed roller
- Other characteristics
- aluminium
- Load
113 lb
(51.3 kg)- Stroke
1.5 in
Description
Crossed Roller Slide Tables (Aluminum)
Family: NBT-1000A
Model: NBT-1065A
Price: $ 336.00
All dimensions in inches unless otherwise specified
Mounting Dimensions Carriage
Spacing N : 0.689
Spacing P : 0.394
Thread J : 4-40
Depth K : 0.177
Base
Spacing R : 0.197
Spacing S : 0.866
C-Bore D : 0.198
C-Bore d : 0.125
Depth h : .125
Profile Dimensions
Height A +/- .005 (0.13) : 0.590
Width B +/- .010 (0.25) : 1.181
Base Thickness C : 0.160
