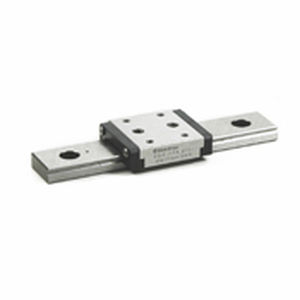

Linear guide with recirculating ball carriage BSGS9W-1-290

steelprecisioncompact

Recirculating Wide Ball Slide Guides (BSG-W) Family: BSGS9W Model: BSGS9W-1-290 Price: $ 394.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 9 (0.354) B : 25 (0.984) L2 : 31.5 (1.24) L1 : 1.185 (30.1) W : 3.5 (0.138) P1 : 18 (0.709) P2 : 12 (0.472) S1 : M2.6 e1 : 2.5 (0.098) L3 : 22.1 (0.87) W2 : 12.5 (0.492) S2 : M4 e2 : 3.5 (0.138) b : 7 (0.276) Basic Load Ratings : kgf (lbf) Dynamic C : 160 (352) Static Co : 250 (551) Dimensions of Guide Rail : mm (in) P : 30 (1.181) H1 : 5.2 (0.205) C : 14 (0.551) B1 : 7 (0.276) B2 : — W1 : 5.5 (.217) d x G x h : 3.5 x 6 x 3.2 (.138 x .236 x .126) S3 N Type : — N : 10 (0.394) Weight : kgs (lbs) Carriage - Lb (kg) : 0.02 (0.044) Guide Rail - Lb/ft (kg/m) : 0.5 (0.336) : mm (in) Maximum Length : 700 (27.6x)
