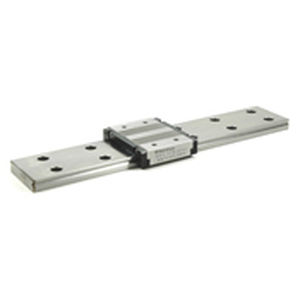

Linear guide with recirculating ball carriage BSGS16W-1-230

precisionsteelcompact

Recirculating Wide Ball Slide Guides (BSG-W) Family: BSGS16W Model: BSGS16W-1-230 Price: $ 281.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 16 (0.63) B : 60 (2.362) L2 : 55.5 (2.185) L1 : 51.2 (2.016) W : 7.5 (0.295) P1 : 45 (1.772) P2 : 20 (0.788) S1 : M4 e1 : 4.5 (0.177) L3 : 42 (1.654) W2 : — S2 : — e2 : — b : 13 (0.512) Basic Load Ratings : kgf (lbf) Dynamic C : 500 (1102) Static Co : 720 (1587) Dimensions of Guide Rail : mm (in) P : 40 (1.575) H1 : 9.5 (0.374) C : 42 (1.654) B1 : 9.5 (0.374) B2 : 23 (.906) W1 : 9 (0.354) d x G x h : 4.5 x 8 x 4.5 (.177 x .315 x .177) S3 N Type : — N : 15 (0.591) Weight : kgs (lbs) Carriage - Lb (kg) : 0.15 (0.331) Guide Rail - Lb/ft (kg/m) : 2.95 (1.982) : mm (in) Maximum Length : 1900 (74.8x)
