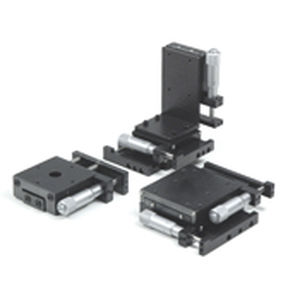

Linear positioning stage 101SD-XYZ
XYZmanually-operated3-axis

linear positioning stage
linear positioning stage
linear positioning stage
Add to favorites
Compare this product

Characteristics

Orientation
linear, XYZ
Type
manually-operated
Number of axes
3-axis
Other characteristics
miniature, crossed roller, micrometer-driven
Stroke

0.5 mm (0.02 in)

Description

The micrometer positioning stages and crossed roller positioning stages were manufactured by Del-Tron position company. The units travel ranges from .25” to 2.0”. They come in various types such as X, XY and XYZ configurations that can carry loads ranging from 4 lbs on our miniature ball slide series all the way up to 160 lbs on our crossed roller positioning stages. They are versatile with an accurate travel for intermittent motion applications. They also have a positive locking on side mounted lock feature that prevents movement of carriage. The accurate measurements form on the carriages like spring loaded against micrometer heads with 0.001" (0.01mm) graduations. Further, they are adaptable to one, two or three axis models which can be used in any orientations.
