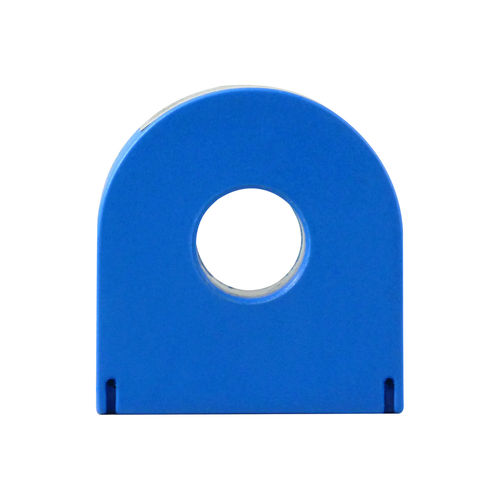

Transformer current sensor RGT Series

transformer current sensor
transformer current sensor
Add to favorites
Compare this product


Other characteristics
solid-core, precision
Primary current

5 A, 20 A, 50 A, 100 A


DENTs RGT Series toroidal current transformers are designed for Revenue Grade IEEE Class metering applications that require maximum accuracy and precision. The superior performance, robust design, and compact size of the RGT Series CTs make them ideal to be used for current measurement in panel boards, switchgear, and industrial control equipment. Designed for use on ANSI C12 Class meters, the revenue grade performance of these CTs meets or exceeds IEC 61869-2 Class 0.2; IEC 60044-1 Class 0.3; and IEEE C57.13 Class 0.3. The RGT Series CTs are CUL/US 61010 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices. They are available for current inputs up to 100 Amps with 8 foot long, 24 AWG twisted pair leads. Available in four amperage ranges: 5A, 20A, 50A, 100A.
