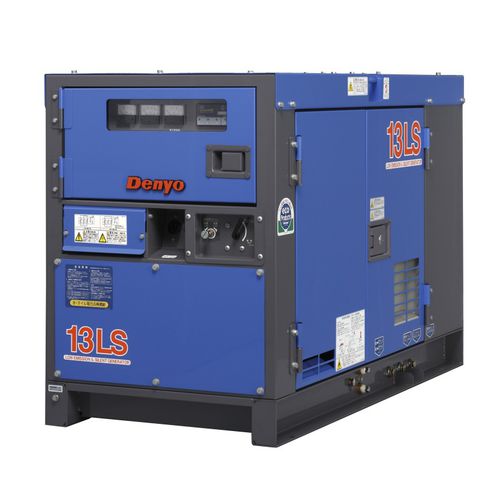

Diesel generator set DCA-13LSK
three-phasestationaryportable

diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary, portable
Frequency
50 Hz, 60 Hz, dual-frequency
Cooling system
water-cooled
Applications
industrial, rental, for construction sites
Options and accessories
soundproofed
Rotational speed

1,500 rpm (9,425 rad.min-1)

Width

650 mm (26 in)

Power in kVA

10.5 kVA, 11 kVA, 13 kVA, 13.7 kVA (14.28 hp)

Noise level

58 dB, 61 dB

Height

900 mm (35 in)

Voltage

Max.: 480 V

Min.: 190 V

Weight

503 kg (1,108.93 lb)

Description

Denyo's generators feature a functional panel layout that can be easily operated even by novices. Routine maintenance is easy with Denyo's generators. Engine oil, the battery, and the coolant are all checked at one location. When conducting repairs or maintenance, the fuel tank comes in an out easily for cleaning by removing the front cover. The radiator can also be cleaned easily. Specifications Model: DCA-13LSK Rated output: Continuous Power factor: Three Phase 0.8 Engine: Kubota D1403-K3A Fuel: Diesel Tank Capacity: 62L Emission Regulation: Tier 3(Japanese regulation) Options ●Contact your supplier for non-standard requests. ●Automatic start and stop device for ATS connection. ●Three way valve for connecting external tank ●Automatic transfer switch ●Dual Voltage system ●Exhaust Pipe ●Salt Corrosion protection

VIDEO
