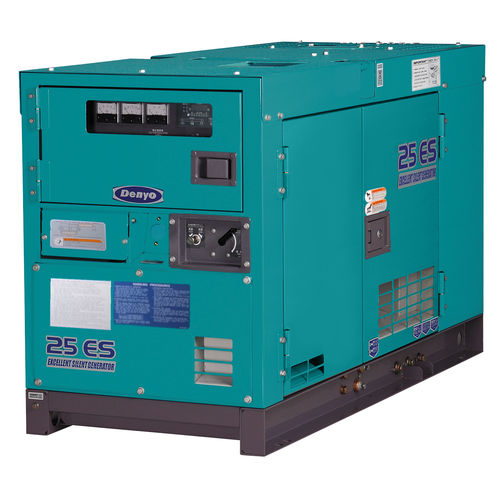

Diesel generator set DCA-25ESKthree-phasestationaryportable
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary, portable
- Frequency
- 50 Hz, 60 Hz, dual-frequency
- Cooling system
- water-cooled
- Applications
- industrial, for construction site, rental
- Options and accessories
- soundproofed
- Power in kVA
20 kVA, 22 kVA, 25 kVA, 27.5 kVA
(27.19 hp, 29.91 hp, 33.99 hp, 37.39 hp)- Voltage
Max.: 480 V
Min.: 190 V
- Rotational speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Width
650 mm
(26 in)- Noise level
61 dB, 65 dB
- Height
900 mm
(35 in)- Weight
591 kg
(1,302.93 lb)
Description
Denyo's generators feature a functional panel layout that can be easily operated even by novices.
Routine maintenance is easy with Denyo's generators. Engine oil, the battery, and the coolant are all checked at one location.
When conducting repairs or maintenance, the fuel tank comes in an out easily for cleaning by removing the front cover. The radiator can also be cleaned easily.
Specifications
Model: DCA-25ESK
Power Factor: Three Phase 0.8
Engine: Kubota V2203-KB
Fuel: Diesel
Tank Capacity: 62L
Options
●Contact your supplier for non-standard requests.
●Automatic start and stop device for ATS connection.
●Three way valve for connecting external tank
●Automatic transfer switch
●Dual Voltage system
●Exhaust Pipe
●Salt Corrosion protection
