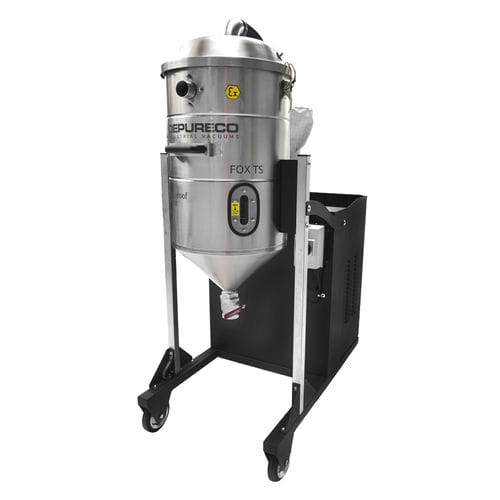

Industrial vacuum cleaner FOX TS 5,5 Z22 II3D

hazardous dustthree-phasestainless steel

Industrial ATEX IIIC certified vacuum with submerged flow in inert liquid, it is the ideal solution for 3D printers that use metal powders. SUCTION UNIT The suction unit is an ATEX certified side channel blower with direct coupling between motor and impeller. Furthermore, to guarantee safe work, the unit is equipped with a safety valve which, in the event of obstruction in the vacuuming elements, prevents overheating. INLET The vacuumed material enters the chamber through the inlet which is totally immersed in the inert liquid. In this way it is possible to vacuum metal dust IIIC and potentially explosive materials. Thanks to this system the probability of an external trigger is essentially inexistent. An inspection window allows the operator to keep the amount of liquid inside the hopper under control at all times. The AISI 304 stainless steel hopper prevents oxidation and guarantees better conductivity to eliminate electrostatic charges. ANTI-SPARK TRAP Inside the hopper is installed an anti-spark grid whose base is an AISI 304 stainless steel micro-perforated sheet and the upper part is made out of steel wool. It is an additional safety system to ensure that no spark passes through the chamber. The grill is removable and easily cleanable. SAFETY FILTER The vacuum cleaner is equipped with an M Class (EN 60335-2-69) safety filter to protect the operator's health and the blower. In the unlikely chance a particle of the collected material goes through the water it will be stopped. Furthermore, on the lid is installed a safety valve for the automatic discharge of hydrocarbon gases.
