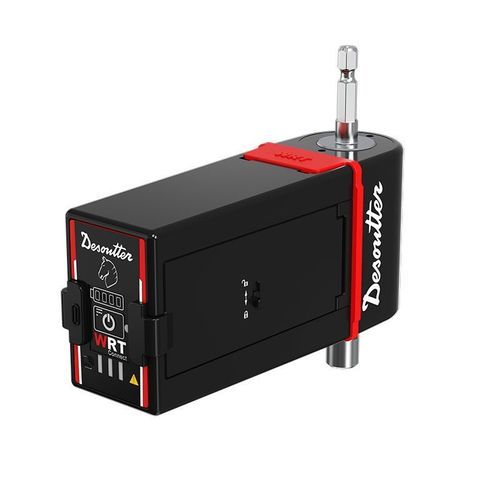

Rotary torque sensor WRT10-Hex1/4

hex drivedigitalwireless

Overview
User-friendly wireless rotary torque transducer that captures torque and angle data with trace recording for quality control. Measures 1–10 Nm and provides a 1/4″ hex mechanical output. No additional hardware required. Compatible with click-wrenches, slip-wrenches, pneumatic tools, direct-drive nutrunners and Pulse tools. Redesigned for improved accuracy and durability. Battery included; run time approx. 8 hours.

Identification

• Model: WRT10-Hex1/4
• Part number: 6152210520

Torque

• Max torque capacity: 10 Nm
• Min torque capacity: 1 Nm
• Overload torque: 12 Nm

Speed

• Max free speed: 10000 rpm

Design and functions

• Output drive size (in): 1/4″
• Output drive type: Hex
• Signal type: Digital (wireless)
• Transducer type: Rotary

Size and weight

• Height (H): 45 mm
• Length (L): 115.8 mm
• Width (W): 138.3 mm
• Weight: 1.3 kg

General

• Accuracy: ±0.5% of reading value
• Family: Torque transducers
• Measurand: Torque & Angle

Specifications

• Model: WRT10-Hex1/4
• Part number: 6152210520
• Measuring range: 1 Nm to 10 Nm
• Overload torque: 12 Nm
• Accuracy: ±0.5% of reading
• Output: 1/4″ hexagonal (mechanical output drive)
• Signal: Digital (wireless communication via web interface)
• Max free speed: 10000 rpm
• Battery: included, approx. 8 hours operation
• Weight: 1.3 kg
• Dimensions (H x L x W): 45 mm x 115.8 mm x 138.3 mm
• Compatibility: click-wrenches, slip-wrenches, pneumatic tools, direct-drive nutrunners, Pulse tools
