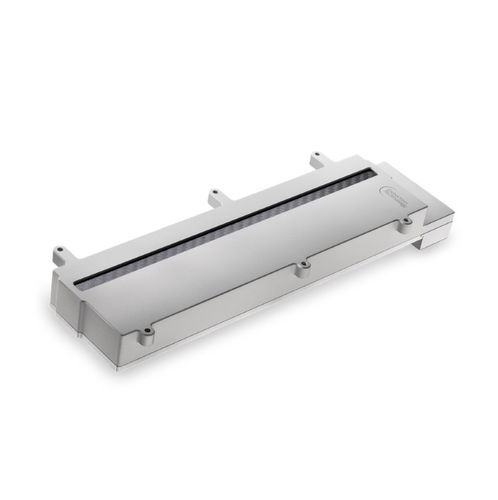

X-ray flat panel detector X-panel 2301

X-Panel 2301 is a CMOS X-ray flat panel detector designed primarily for cephalometric imaging. X-Panel 2301 complements the X-Panel detector family targeted for the dental X-ray market. A combination of X-Panel 2301 and X-Panel 1511 boosts all mainstream extraoral dental X-ray imaging modalities. The combo facilitates to design and maintain imaging systems that run cone beam computed tomography (CBCT), panoramic and cephalometric applications. The low-dose X-Panel 2301 detector has the largest active area yet fast scanning speed, which enhances patient experience and safety. X-Panel 2301 comes with an active area of 233.1 x 7.2 mm, and a frame rate of up to 300 fps in full size and full resolution. The solution is powered by a 14-bit ADC providing fast, low noise and high-resolution analog-to-digital conversion. As a unique feature, X-Panel is equipped with a data buffer that can be used in a specific scan-to-buffer mode to store a full pack of images, up to 2,600 full frames. This provides extra safety for imaging data management. X-Panel 2301 has a pixel size of 100 μm, and is designed for an X-ray energy range of 40-125 kVp. The X-Panel 2301 design pays special attention to robustness and usability. X-Panel 2301 has a durable housing that effectively shields the vulnerable parts of the sensor and readout electronics. X-Panel has a Gigabit Ethernet interface, and a software development kit available to support easy integration.
