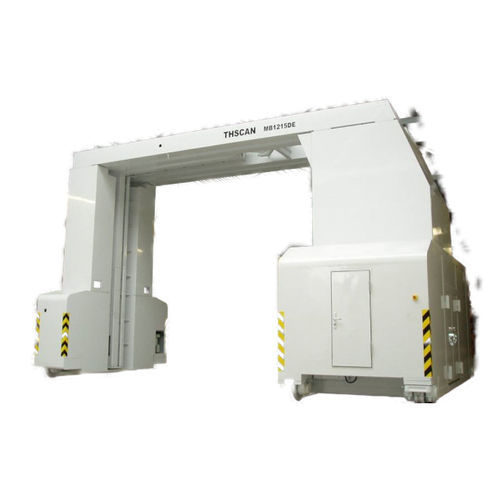

2D scanner MB1215DEfor detectioninspectionfor light vehicles
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2D
- Applications
- inspection, for detection, for cargo, for light vehicles
- Technology
- X-ray
Description
MB1215DE Relocatable Gantry Scanner – Container & Vehicle Inspection – Modular Rail-Mounted Concept – Material Discrimination – Dual-Energy Technology
Next-generation relocatable scanner equipped with a high-energy dual-energy linear accelerator (LINAC) delivering excellent image resolution. Its unique modular gantry concept greatly facilitates transport and relocation.
Rail-mounted, the MB1215DE scans vehicles in both directions for complete inspection.
Modular Rail-Mounted Relocatable Gantry
Unique modular gantry concept on the market, easily movable on rails by remote control.
Self-shielded system effectively reducing the radiation protection zone to 36 m × 16 m. Ideal for ports, border crossings, and sensitive sites.
Dual-Energy LINAC Technology
Interlaced dual-energy 6/3 MeV electron linear accelerator for organic/inorganic discrimination with specific color codes.
320 mm steel penetration.
Maximum scan dimensions: 18 m (L) × 2.6 m (W) × 4.6 m (H).
Optional Advanced Oblique View
Optional oblique view: X-ray beam rotated 5 to 8 degrees from perpendicular position.
Comparison with 90-degree image enables better detection of fraud and concealed objects.
Multi-Function Integration
Options: LPR (license plate recognition), RM (radiation monitor), CCR (container code recognition).
Integrates perfectly into logistics chain without compromising efficiency.
Radiation protection compliant with IAEA, ICRP, and WHO standards.
Option: Radioactivity detection.
Technical Specifications
Certified relocatable solution for container and vehicle inspection in ports, customs, and sites requiring relocation flexibility.
Next-generation relocatable scanner equipped with a high-energy dual-energy linear accelerator (LINAC) delivering excellent image resolution. Its unique modular gantry concept greatly facilitates transport and relocation.
Rail-mounted, the MB1215DE scans vehicles in both directions for complete inspection.
Modular Rail-Mounted Relocatable Gantry
Unique modular gantry concept on the market, easily movable on rails by remote control.
Self-shielded system effectively reducing the radiation protection zone to 36 m × 16 m. Ideal for ports, border crossings, and sensitive sites.
Dual-Energy LINAC Technology
Interlaced dual-energy 6/3 MeV electron linear accelerator for organic/inorganic discrimination with specific color codes.
320 mm steel penetration.
Maximum scan dimensions: 18 m (L) × 2.6 m (W) × 4.6 m (H).
Optional Advanced Oblique View
Optional oblique view: X-ray beam rotated 5 to 8 degrees from perpendicular position.
Comparison with 90-degree image enables better detection of fraud and concealed objects.
Multi-Function Integration
Options: LPR (license plate recognition), RM (radiation monitor), CCR (container code recognition).
Integrates perfectly into logistics chain without compromising efficiency.
Radiation protection compliant with IAEA, ICRP, and WHO standards.
Option: Radioactivity detection.
Technical Specifications
- X-ray source: Interlaced dual-energy electron linear accelerator
- Energy: 6/3 MeV
- Steel penetration: 320 mm
- Maximum scan dimensions: 18 m (L) × 2.6 m (W) × 4.6 m (H)
- Throughput: 20-25 vehicles/hour
- Scan speed: 0.4 m/s
- Operators: 4
- Operating mode: Gantry – stationary object, mobile scanner
- Restricted safety zone: 36 m × 16 m
- Zoom: 1/4x, 1/2x, 1x, 2x, 4x
- Options: LPR, RM, CCR, oblique view (5-8)
Certified relocatable solution for container and vehicle inspection in ports, customs, and sites requiring relocation flexibility.
