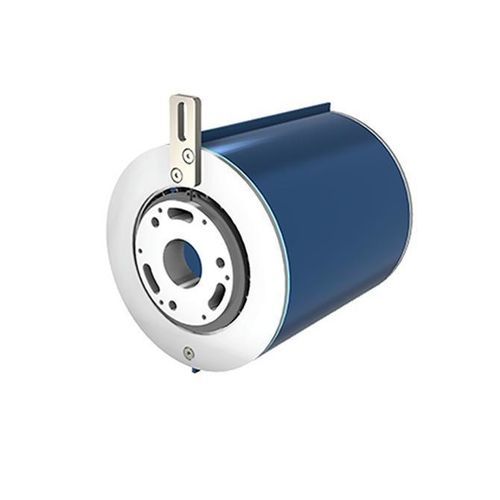

Hybrid slip ring

sub-assemblythrough-borefor industrial applications

Overview
Deublin standard slip rings transmit power and signals between stationary and rotating components. Available in multiple mechanical configurations to suit industrial and heavy‑duty applications.

Power

• Shaft mount: shaft‑mounted units with carbon‑graphite brushes and axial cable exits on rotor and stator sides for high‑power transfer.
• Threaded rotor: threaded‑rotor variants with removable cover and radial cable exits; carbon‑graphite brushes standard for power circuits.
• Through‑bore: through‑bore models providing axial cable exits on the stator side and carbon‑graphite brushes for power transmission.
• Radial cable exit: configurations with radial cable exits on the stator side for flexible installation.

Signal

• Precious‑metal contacts: contact technology for high‑integrity signal transmission; available with or without connectors and with radial or axial exits.
• Multiple channel configurations: support for high channel counts and axial round cable exits to accommodate analog and digital signals.
• Compact units: compact slip rings with M12 connector options for plug‑and‑play digital interfaces.
• Rugged variants: versions equipped with terminal blocks and press‑fit clamp technology for secure single‑wire connections in demanding environments.

Combined power & signal

• Hybrid technology: assemblies combining precious‑metal contacts for signals and carbon‑graphite brushes for power to support mixed transmission needs.
• Power channel options: configurations that use precious‑metal contact technology where higher integrity for power channels is required.
• Plug & play: options with plug‑and‑play connections to speed system integration and commissioning.
• Bundled assemblies: bundle designs enabling the combined transmission of power and multiple digital channels within a single unit.

Technical specifications

• Mechanical configurations: shaft mount, threaded rotor, through‑bore, radial‑cable exit and bundled designs.
• Contact technologies: carbon‑graphite brushes for power; precious‑metal contacts for signals; hybrid combinations available.
• Cable exits: axial and radial exits; M12 connector options for compact digital units.
• Electrical: high‑power capacity options and multi‑channel support for signal/data.
• Applications: designed for industrial longevity and reliable operation in rugged environments.
