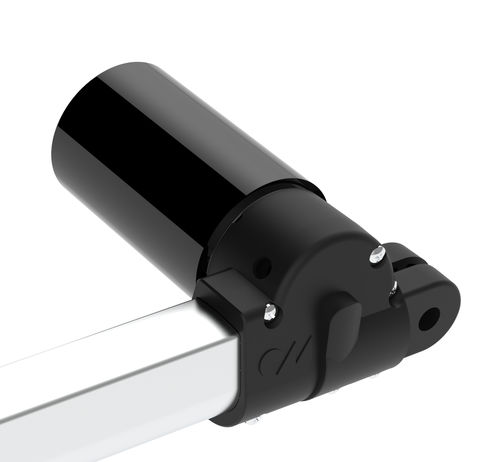

Electric actuator ALPHADRIVE 5linearlead screwworm gear
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- lead screw, worm gear
- Motor
- DC
- Voltage
- 24-volt
- Other characteristics
- compact, with guide
- Stroke
Max.: 350 mm
(13.78 in)Min.: 130 mm
(5.118 in)- Force
Max.: 6,000 N
Min.: 3,000 N
- Speed
Max.: 35 mm/s
Min.: 0 mm/s
Description
Compact, powerful and low-maintenance
Equipped with our proven ALPHADRIVE technology, the ALPHADRIVE 5 unites flexibility and performance in a single drive. Its pushing force is 6,000 N at an adjustment speed of maximum 35 mm/s without load. The maintenance-free drive is also very compact, with a small fitting length of only 130 mm plus stroke. The aluminium guide profile and stroke pipe made of aluminium and steel both ensure maximum system stability. The ALPHADRIVE 5 is optionally available with a Hall sensor.
• Compact drive that takes advantage of proven ALPHADRIVE technology
• Maintenance-free drive
