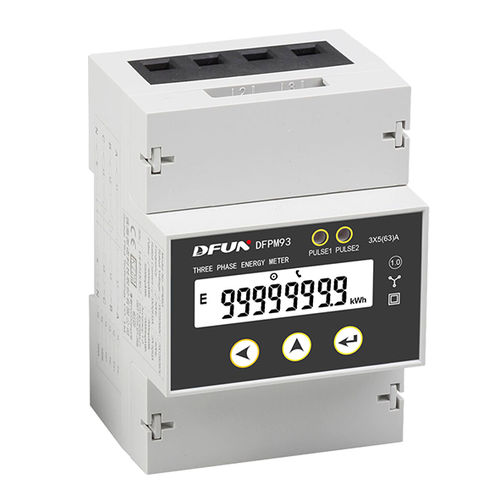

Three-phase electric energy meter DFPM93 DIN rail50 HzRS-485
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- DIN rail
- Other characteristics
- 50 Hz, RS-485, with LCD display, Modbus, 60 Hz
- Voltage
110 V, 120 V, 220 V, 230 V, 240 V
Description
DFPM93 is a three phase configuration energy meter suit for AC LV voltage system. It’s very easy to install with DIN rail. Suitable for house building, commercial building, switch board room, power distribution Box, etc.
➤ Suit for 110V, 120V, 220V, 230V, 240V AC low voltage system
➤ 7 +1 digits LCD display (999999.9 kWh)
➤ Measure U, l, P, Q, s, PF, F, kWh, kvarh, Multi-tariff energy value
➤ Record freeze energy for per 15 min/day
➤ kWh accuracy: 5(6)A class 0.5s, 5(63)A class 1.0
➤ Support over-voltage timing,under-voltage timing, over-load timing
➤ 2 LED indicate pulse (Settable for kWh or kvarh)
➤ LCD display prompt for phase sequence error
➤ 3 keys for programming, 35mm DIN rail installing, standard DIN ED5002
➤ One RS485 port, MODBUS or DL/T645 protocol (selectable)
➤ Record historical energy for latest 31 days, latest 12 months
