Single-phase electric energy meter DFPM20

DIN railRS-485Modbus

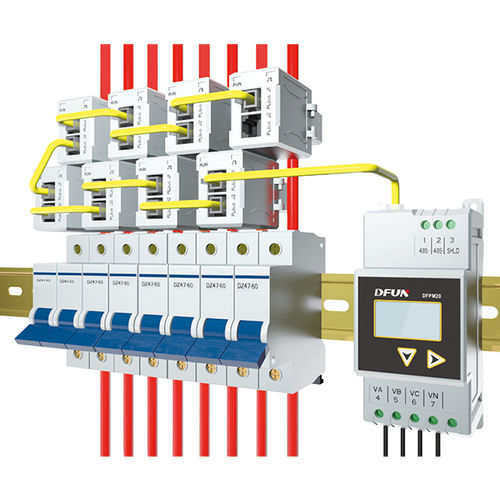

DFPM211 specially designs for Hotel, Hospital, Dormitory, Comercial Building, and other applications. It can calculate power consumption, measuring AC device electricity. It is the smallest AC Max. 30 channel energy meter. ▸ Small size, can be install at the closest point, integrate in existing space-constrained installations ▸ Ultra-compact design, consist of control unit and current sensors (solid core or split core) ▸ Wide measurement range, Max. support 63A ▸ Suppport 30 single phase circuit or 10 three phase circuit AC measuring ▸ Voltage & Current class 0.5, kWh class 1.0 ▸ Multi network type, 1 phase 2 wires, 3 phase 4 wires Main Function Real-time Measurement ▸ Voltage, Current, Active power, Reactive power, Apparent Power. Power Factor. Frequency Energy Consumption ▸ Active energy. Reactive energy Alarm Function ▸ Overload. Under load. Over current, Sensor fault Communication ▸ 1 RS485 port. MODBUS-RTU protocol
