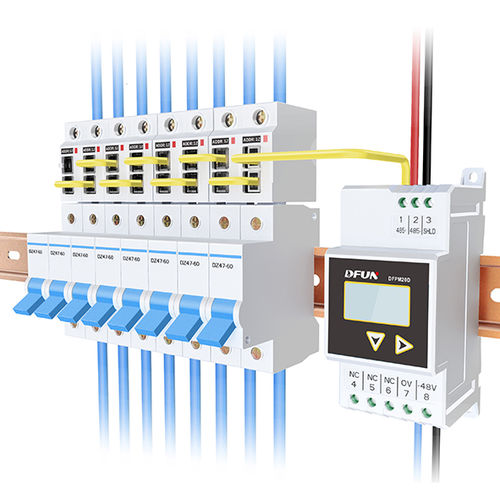

Single-phase electric energy meter DFPM20D

DIN railRS-485Modbus

DFPM20D specially designs for telecommunication base station application to calculating power consumption, measuring DC device electricity.It is the smallest DC multi-channel Energy Meter with a compact design, consists of main module and measure module. ▸ Small Size - Can be installed at the closest point, integrate into existing space ▸ Easy Installation - Consist of a main module and measure module, connected by PLbus Daisy chain bus topology and RJ12 port, measure module straight insert into the circuit breaker ▸ High Accuracy - Voltage & Current class 0.5, kWh class 1.0 ▸ - 48VDC Power Supply - Special design for Telecom BTS application ▸ Wide Measurement Range - Max. support 63A direct connect, no need for extra Hall Sensor or Shunt ▸ Multi-Circuit - Support 12 single phase circuit Function ▸ Measure - Voltage. Current. Power. Energy (input / output / total) ▸ Alarm - Voltage limit alarm (high limit/ low limit). Current limit alarm (high limit). Communication failure alarm ▸ Communication - Modbus-RTU protocol. RS485 port
