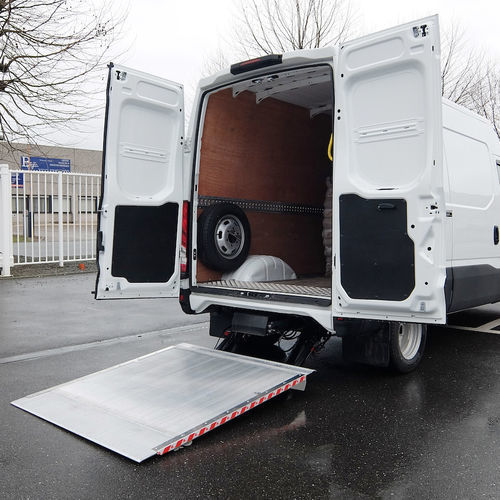

Retractable lift gate DH-LSP.10 series

van

Largest possible platform surface on factory built panel vans The DH-LSP.10 is specially designed for Iveco Daily factory built panel vans. It replaces the earlier solutions DH-LC2.07 and DH-LSP.07.02. The construction with 2 lift cylinders and 1 or 2 tilt cylinders offers excellent platform stability (1 tilt cylinder for 500 kg; 2 for 750-1000 kg (*)). Unlike the DH-LSP.05 and LSP.07 which have one tilt cylinder mounted on the back of the platform, the tilt cylinder(s) of the DH-LSP.10 is (are) mounted alongside the lift arms like conventional cantilever lifts DH-LM. Besides the license number plate and light, the visible platform surface is completely free for publicity purposes. There are 2 types: the DH-LSP.10.01 suits Iveco Daily vans with 1120 mm rear overhang (measured from the center of the rear axle). The DH-LSP.10.02 suits the executions with longer overhang. Solutions exist for air suspension and gas-driven vans, please contact DHOLLANDIA for further information. (*) Depends on vehicle restrictions. Consult the instructions of the vehicle manufacturer. CHARACTERISTICS PLATFORM • Light-weight aluminium platform with anti-slip surface • Aluminium platform with profiles oriented in longitudinal direction [type V.., and a cross milled anti-slip protection pattern FUNCTIONAL & MECHANICAL CHARACTERISTICS • Conical / wedge platform. Level ride with automatic tilt at ground level • Platform tilt adjustable at any position from the exterior controls HYDRAULICAL CHARACTERISTICS • 2 lift cylinders for maximum platform stability • 1 or 2 tilt cylinders with spring assisted platform opening, on the lift frame • Electrical safety valves on all cylinders
