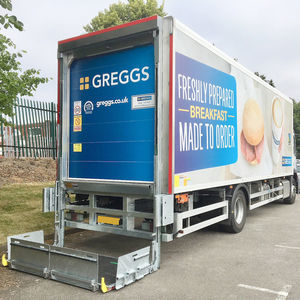

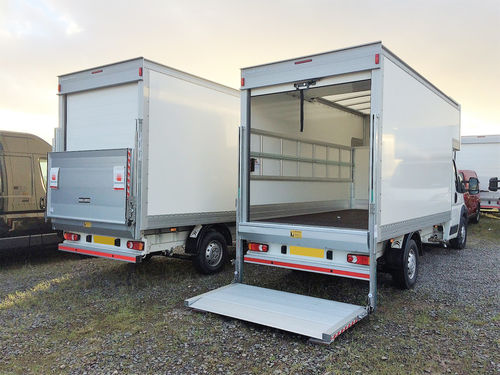

Column type lift gate DH-VO.07.K1

for vehiclesfor specific applicationsfor dump trucks

The DH-VO.07.K1 is a light-duty column lift, designed for commercial vehicles up to 7.5T GVW. This lift offers maximum all-round efficiency. In standard execution, it is equipped with a single-piece aluminium platform. Further, a wide range of options exists to adapt the lift to meet specific applications, such as: • Roll-stops, hinged ramps and safety rails • Dump-over and Dump-through lifts for tipper vehicles • Air-permeable mesh platforms and foldable platforms for drop-side and flat-bed vehicles (less wind resistance, better fuel economy) • K2 execution to increase the lifting height for any given column width [OVU015] • K9 execution to lift above the vehicle floor level [OVU013] • Very versatile lift available with a large choice of value-adding options and extra equipment. • Lift combines maximum operational reliability with a great ease of use. • Reinforced lift columns made of hot-dip zinc plated steel (standard), or weight-saving full aluminium columns (option). • Easy to install to the vehicle body. No chassis constraints. CHARACTERISTICS PLATFORM • Light-weight aluminium platform with fixed leading edge • Wind permeable platform with grids or mesh steel available as an option [OVP509... Option offers improved fuel efficiency on open vehicles; and quick evacuation of rain, snow, mud through the platform surface • Manual opening and closing of the platform, (where needed) supported by powerful torsion bars FUNCTIONAL & MECHANICAL CHARACTERISTICS • Lower beam: operated by 1 single lift cylinder, mounted in a beam at the vehicle floor level, and a set of chains and pulleys • Cylinder beam made of aluminium to save weight and increase pay-load
