Digital camera PYROVIEW 380L

laboratoryfor research and developmentindustrial

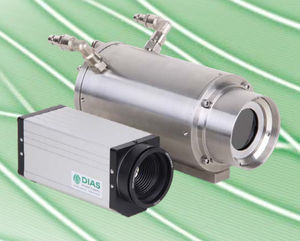

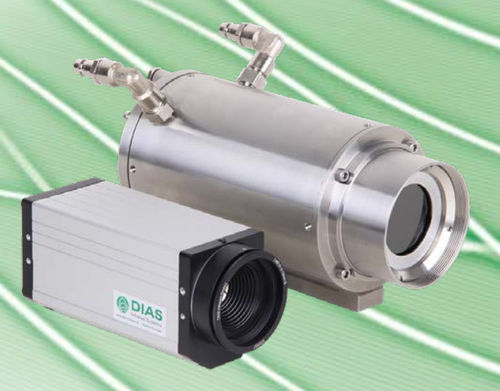

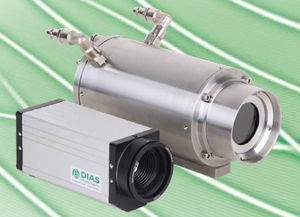

Whether in quality control, process measurement technology, research and development projects or fire detection – the PYROVIEW 380L measures contactless temperatures exactly and reliably. Also in fast processes or at temperature changes the data acquisition happens in real-time. In stationary industrial continuous operation measurement data is recorded flexibly with high thermal resolution on fixed or moving measurement objects. In this way production processes are monitored and controlled efficiently. Therefore the Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 50 images per second. The maximum image frequency of 50 Hz is adjusted optimally to the thermal time constant of the infrared array. Numerous motor focus infrared lenses, including wide angle and telephoto lenses, provide a flexible adjustment to different measurement object sizes at different measurement distances. The infrared camera is either built in a small aluminium housing "compact+" or in a stainless steel industry protection housing "protection" that has a protection window, an air purge unit and an optional watercooling. Precise non-contact temperature measurement between –20 °C and 500 °C Uncooled microbolometer array with 384 × 288 pixels Spectral range 8 µm to 14 µm Numerous optics with motor focus Measurement frequency 50 frames per second Ethernet interface (real-time, 50 Hz) Large dynamic range and 16-Bit analog digital converter Camera in small housing „compact+“ (IP54) or industry protection housing „protection“ (IP65) Integration in customized system solutions including hard- and software adjustment
