Digital camera PYROVIEW 1600N

for the metallurgical industryfor process monitoringfor production

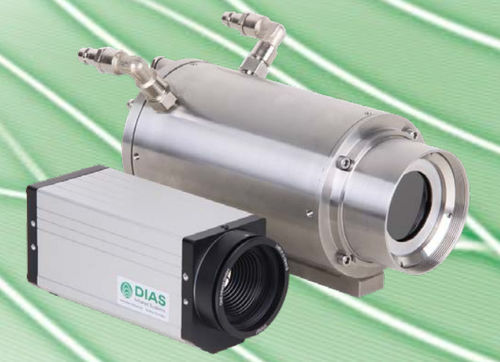

Whether in quality control, process monitoring or process automation in the metal industry – the high-resolution PYROVIEW 1600N and 1920N thermal imaging cameras measure temperatures accurately and reliably. In order to minimize physically induced temperature measurement errors due to emissivity inaccuracies, the cameras operate at particularly short wavelengths of 0.8 µm to 0.9 µm. Even in fast processes or with rapid temperature changes, data is transmitted in real time. In stationary industrial continuous operation measurement data is recorded with high spatial resolution on fixed or moving measurement objects. In this way production processes are monitored and controlled efficiently. The Gigabit Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 25 images per second. Motorized focusable standard, telephoto and wide-angle infrared lenses allow flexible adaptation to different measurement object sizes, even at different measurement distances. The infrared camera is either built in a small aluminium housing „compact+“ or in a stainless steel industry protection housing „protection“ that has a protection window, an air purge unit and an optional watercooling. The modular Windows software PYROSOFT of the camera can be adjusted and extended to process-related requirements. The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera.
