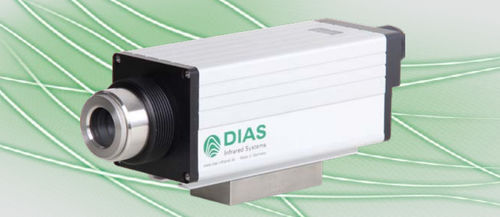

Infrared thermometer PYROSPOT DS 10N cal

digitalUSBfixed

The digital DIAS transfer radiation thermometers PYROSPOT DS 10N cal/DG 10N cal are particularly long-term stable and high-precision calibrated devices that are specifically designed for inspection of black body calibration sources and for the traceable calibration of infrared temperature measurement devices. The PYROSPOT DS 10N cal/DG 10N cal are equipped with a fixed optics; the smallest measurement field has a diameter of 3 mm at a measurement distance of 600 mm. To compensate the Size Of Source Effect (SSE) of larger calibration sources, the devices have an individual protocol. The response time t95 of the pyrometer is set to 1 s (fixed) to guarantee a stable operation. Via the included USB connection cable the devices can be connected to a computer. In this way the measured values can be visualized and the Size Of Source Effect (SSE) can be revised. The pyrometer can be aimed exactly to the measurement object by using the integrated through-lens sighting. Transfer radiation thermometer set including: • PYROSPOT DS 10N cal/DG 10N cal • Clamp base with tripod adapter • Manual • Inspection sheet with 10 measurement points (traceable back to PTB national measurement standards), optional PTB calibration certificate • “Size Of Source Effect” curve • Plug connector with AC connection adapter for EU/US/UK/AU • USB connection cable • Software PYROSOFT Spot • Plastic device case
