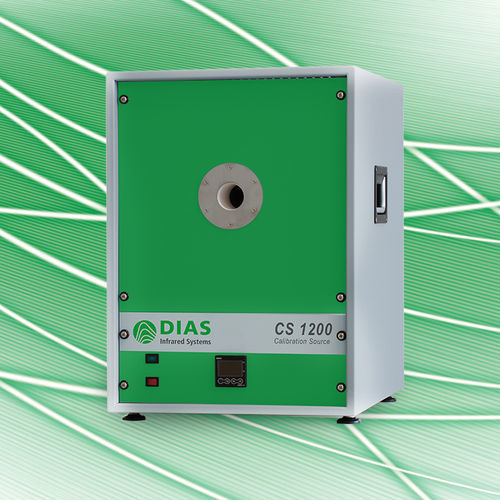

Pyrometer black body calibration source PYROTHERM CS series

For the calibration and checking of radiation thermometers and infrared cameras, DIAS Infrared produces blackbody calibration sources. The PYROTHERM calibration radiator product range includes numerous types with radiator temperatures between -15 °C and 1500 °C. To ensure a high emissivity close to 1, surface radiators with specially coated surface structures or cavity radiators with a ceramic cavity are used. Precision temperature sensors and PID controllers guarantee high temperature accuracy and stability. With the first four radiator types CS 120, CS 500, CS 1200 and CS 1500, the radiator temperature can be set within the specified temperature range on the temperature controller and via a digital interface. These device types are therefore particularly suitable for use in calibration laboratories. In contrast to this, the last two types, CS F35 to F150 and CCS 130, have their emitter temperatures set at the factory according to customer specifications. Together with the robust design, these emitter types are often used for on-site monitoring of permanently installed pyrometers and thermal imaging cameras. The CS 400 device type is also designed for on-site use. However, it also allows the temperature to be set by the customer. Thermal infrared emitters In addition to infrared detectors suitable miniaturized infrared emitters are required for application in gas analysis and spectroscopy. For this, infrared emitters of the HISpower series are suitable: Electrical pulsable thermal emitters mounted in TO8 package Patended nanostructured radiation element with high emission Wavelength between 1 µm and 16 µm Various high-quality filter windows
