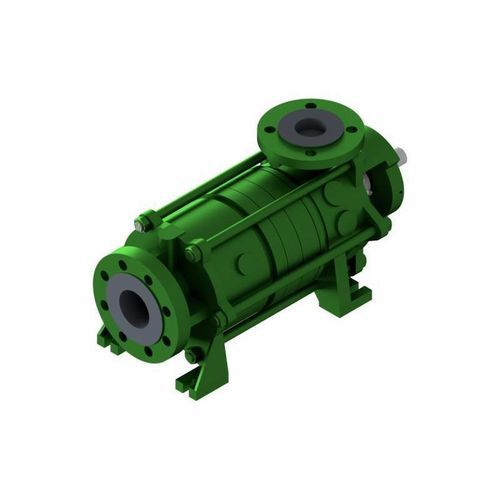

Side-channel pump SC

self-primingstationarycast iron

Description
The Type SC is a single- or multistage, self-priming, horizontal side-channel pump. In addition to self-priming capability, side-channel pumps offer an advantage for low flow rates against relatively high discharge heads compared with standard centrifugal pumps. The axial suction inlet together with the upstream radial impeller results in low NPSH values. Stages are sealed against the atmosphere by chambered O-rings. The pump shaft is supported on the discharge side in a grease-lubricated rolling bearing; a SiC sleeve bearing is fitted on the suction side. A guide apparatus acts as a pressure-holding stage so that enough liquid remains in the pump at shutdown to permit reliable restarting even with a suction lift.

Applications

• Oil & Gas
• Chemical
• Petrochemical
• Tank storage / tank farms
• Renewable energy / environmental engineering

Technical data
Q max: 32 m³/h**
H max: 600 m**
Operating pressure: 40 bar*
Temperature: 180°C*
Max speed: 1750 min−1
Seal: mechanical seal
Installation: horizontal
Suction inlet: axial
Self-priming: yes
Bearings: rolling bearings (discharge side), SiC sleeve bearing (suction side)
Lubrication: grease
Materials: Duplex, Ni-based alloys, spheroidal cast iron / cast steel, austenitic cast steel
Standards: ISO 5199
Ex protection: Category 2 / Zone 1

Note
* higher pressures and temperatures on request
** dependent on size and speed

Characteristics / Technical specifications

• Type designation: Type SC
• Design: single- or multistage side-channel pump, horizontal
• Flow (Q max): up to 32 m³/h (dependent on size and speed)
• Head (H max): up to 600 m (dependent on size and speed)
• Operating pressure: up to 40 bar (higher pressures on request)
• Fluid temperature: up to 180°C (higher temperatures on request)
• Max. speed: 1750 min−1
• Seal: mechanical seal
• Self-priming: yes
• Suction inlet: axial
• Bearings: discharge side grease-lubricated rolling bearing, suction side SiC sleeve bearing
• Lubrication: grease
• Materials: Duplex, nickel-based alloys, spheroidal cast iron / cast steel, austenitic cast steel
• Standards: ISO 5199
• Ex protection: Category 2 / Zone 1
