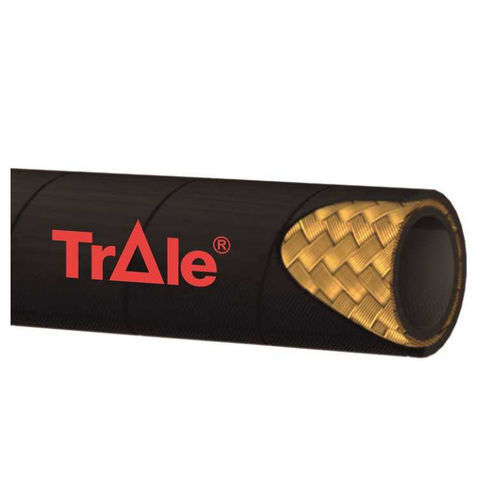

Hot water hose MSC011 serieshydraulicsynthetic rubberindustrial
Add to favorites
Compare this product
Characteristics
- Use
- for hot water, hydraulic
- Material
- synthetic rubber
- Applications
- industrial
- Other characteristics
- abrasion-resistant, oil-resistant, weather-resistant, spiral wire, steel-braided
- Inner diameter
6.5 mm, 8.1 mm, 9.7 mm, 12.9 mm
(0.256 in, 0.319 in, 0.382 in, 0.508 in)- Outer diameter
13.2 mm, 14.2 mm, 16.5 mm, 19.2 mm
(0.52 in, 0.559 in, 0.65 in, 0.756 in)- Pressure
160 bar, 180 bar, 225 bar
(2,320.604 psi, 2,610.679 psi, 3,263.349 psi)- Temperature
Max.: 155 °C
(311 °F)Min.: -40 °C
(-40 °F)
Description
This series is integrated with artificial rubber component for its inner tubing. This assembly allows high tolerance in handling fluids such as hydraulic, mineral and vegetable oil materials. A singularly braided steel wire is incorporated as its reinforcement solution. Furthermore, this device operates under -40 to 155 degrees Celsius temperature range.
