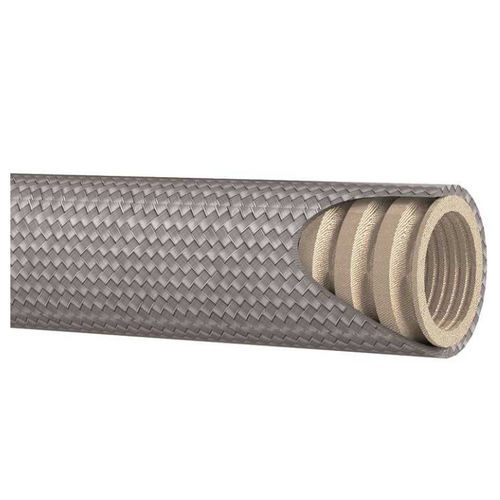

Foodstuff hose M2980 series
fiberglassPTFEfor food industry applications

foodstuff hose
foodstuff hose
foodstuff hose
foodstuff hose
Add to favorites
Compare this product


Characteristics

Use
foodstuff
Material
PTFE, fiberglass
Applications
for food industry applications
Other characteristics
chemical-resistant, reinforced, fire-resistant, corrugated, stainless steel-braided
Inner diameter

9.65 mm, 13.45 mm, 19.85 mm, 25.88 mm, 32.3 mm
(0.38 in, 0.53 in, 0.781 in, 1.019 in, 1.272 in)

Outer diameter

15 mm, 19.18 mm, 26.87 mm, 32.9 mm, 39.78 mm
(0.591 in, 0.755 in, 1.058 in, 1.295 in, 1.566 in)

Pressure

60 bar, 69 bar, 76 bar, 86 bar
(870.226 psi, 1,000.76 psi, 1,102.287 psi, 1,247.325 psi)

Temperature

Min.: -54 °C
(-65.2 °F)

Max.: 200 °C
(392 °F)

Description

Composition: ·Inner tube: convoluted tube in PTFE, resistant to fire, chemically inert. Suitable for food use, according to FDA norm.+ fiberglass band ·Reinforcement: stainless steel AISI 304 braid.
