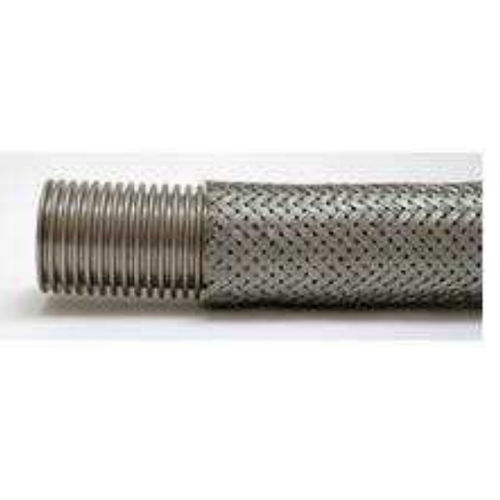

Compressed air hose M93161 series
stainless steelhigh-temperaturecorrugated

Compressed air hose - M93161 series - Dicsa - stainless steel / high-temperature / corrugated
Compressed air hose - M93161 series - Dicsa - stainless steel / high-temperature / corrugated
Compressed air hose - M93161 series - Dicsa - stainless steel / high-temperature / corrugated - image - 2
Add to favorites
Compare this product

Characteristics

Use
for compressed air
Material
stainless steel
Applications
high-temperature
Other characteristics
corrugated, braided stainless steel
Inner diameter

Max.: 100.8 mm
(3.969 in)

Min.: 6.2 mm
(0.244 in)

Outer diameter

Max.: 119 mm
(4.685 in)

Min.: 10.7 mm
(0.421 in)

Pressure

Max.: 120 bar
(1,740.453 psi)

Min.: 16 bar
(232.06 psi)

Temperature

Max.: 550 °C
(1,022 °F)

Min.: -270 °C
(-454 °F)

Description

Composition: ·Inner tube: stainless steel AISI 316. ·Reinforcement: stainless steel AISI 316 braid.
