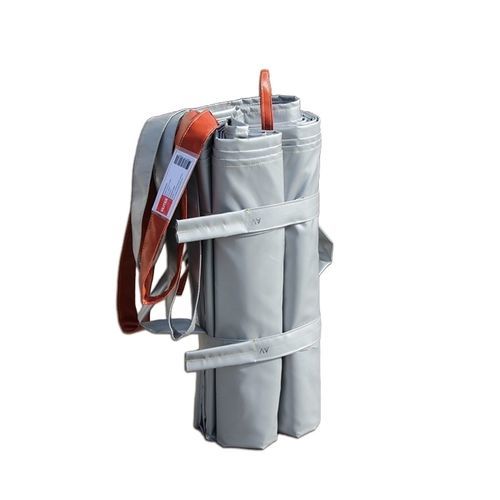

Passive fire protection device COUVAF-B5x6

Overview
Fire containment blanket to cover small cars, motorcycles and equipment containing batteries

• Designed for lithium batteries
• Area: 29 m²
• High temperature resistance
• Continuous 1000 °C - peak up to 1750 °C
• Standard: DIN SPEC 91489

Features

• 4 handles, 60 cm long, to ease blanket deployment
• Storage bag included

Materials

• HT fiberglass fabric
• Coating: silicone
• Resistant to acids and chemicals

Temperature resistance & standard

• Continuous: 1000 °C
• Peak (short duration): 1750 °C
• Standard: DIN SPEC 91489

Dimensions

• Primary indication (L x W): 5 x 6 m
• Other mentioned value (L x W): 5 x 5.8 m
• Area: 29 m²
• Weight: 18 kg

Applications

• Preventive use for damaged batteries
• Smother fires originating from batteries (including lithium‑ion), electrical equipment or machines
• Contain flames under the blanket
• Reduce fire temperature
• Limit spread of smoke and toxic gases
• Reduce explosion risks under the blanket; provides enhanced protection against explosions
• Protect surrounding areas (charging zones, maintenance, storage, production, etc.)

Characteristics / technical specifications

• Displayed product reference: COUVAF-B5x6
• Series / range: COUVAF
• Mentioned dimensions: 5 x 6 m and 5 x 5.8 m
• Area: 29 m²
• Weight: 18 kg
• Continuous resistance: 1000 °C
• Peak temperature: 1750 °C
• Standard: DIN SPEC 91489
• Materials: HT fiberglass fabric, silicone coating
• Chemical resistance: resistant to acids and chemicals
• Accessories: 4 handles 60 cm, storage bag included
