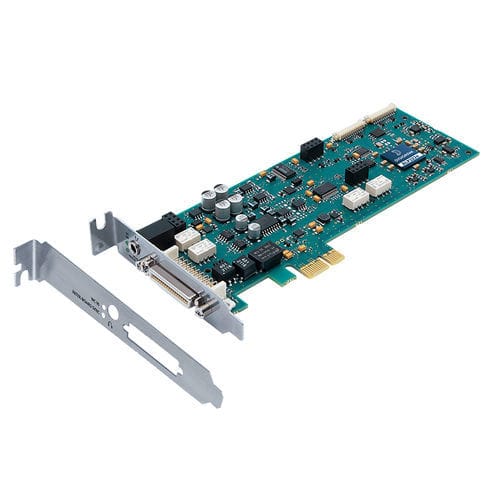

PCI Express sound card ALP222e

low-profilestereo

Universally acclaimed, unchanged Digigram features are still up to meet your challenges. Your favourite, trusted PCX and VX cards essentials still fuel the new Digigram ALP-X range. Same quality, same high standards. A new technology core for this new cards range will push back the limits, offer enhanced performances and simplify users’ daily routines with ALP-X sound cards. ALP222e is a low profile PCIe stereo sound card designed for operating in continuous 24/7/365 use-environments, as part of professional audio applications based on Windows or Linux operating systems. The card offers analog and digital audio connectivity, and features an on-board 8×8-channel mixer that allows for the routing and mixing inputs to the outputs. The low latency drivers are multicard (up to 8 ALP cards) and multi-client. Dimensions L: 168 mm x H: 69 mm x l: 20 mm L: 6.6 inch; H: 2.7 inch; l: 0.8 inch Form Factor Low profile (standard and low profile brackets included) Expansion Bus PCI Express TM (PCIe TM) x1 (x2, x4, x8, x16 compatible) Frequency response @48 kHz: 20 Hz – 20 kHz Inputs : +/- 0.5 dB Outputs : +/- 0.08 dB SNR Inputs A-Weighted: >110 dBA Unweighted: >108 dB Outputs A-Weighted: >115 dBA Unweighted: >112 dB THD + Noise Inputs: <-96 dB @18 dBu (1 kHz) Outputs: <-101 dB @18 dBu (1 kHz) Crosstalk Inputs -111 dB @1 kHz / -110 dB @15 kHz Outputs -130 dB @1 kHz / -111 dB @15 kHz Channel phase Inputs: < 0.01° @1 kHz Outputs: < -7.5° @ 1kHz
