Key Workflow: Linear PCM multichannel stereo sound card for professional playout audio workstations

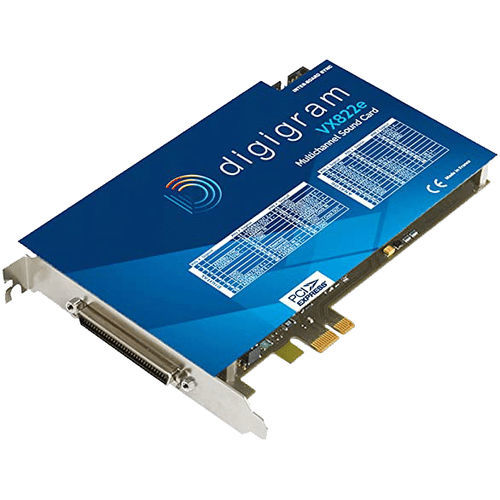

VX822e is a professional linear (PCM) multichannel sound card based on the PCI Express bus interface. It is designed for use in demanding applications such as broadcast radio live-assist, permanent playback, multichannel playback, running under Windows and requiring balanced analog and AES/EBU connectivity.
At a glance
VX822e features eight output and two input channels available through balanced analog and AES/EBU connections, and can synchronize on an external clock (AES11, Word clock, black burst video). It can be used under Windows with software applications based on standard driver interfaces such as WDM Kernel streaming, DirectSound, Wasapi, and ASIO for Windows
Developed for the broadcast industry
Balanced analog and AES/EBU audio connectivity
Interoperable with most of the third party software applications for audio production, under Windows and Linux
Key features
Multichannel linear PCM sound card
PCI Express bus interface
Eight balanced analog outputs and two balanced analog inputs, +24 dBu max level
Four stereo AES/EBU outputs, and one stereo AES/EBU input with hardware sample rate converter
Adjustable input and output analog and digital gains
External synchronization: AES11, Word clock, black burst video
Onboard 3band parametric EQ and Maximizer effects
Support for Windows 32bit and 64bit (WDM kernel streaming, DirectSound, Wasapi, ASIO)
Breakout cables or 2U breakout box BOB8. XLR connectors
