Time and frequency generator EASYREF

time and frequency generator
time and frequency generator
Add to favorites
Compare this product


time and frequency
Other characteristics
analog, compact, 10 MHz, 10-channel, PPS

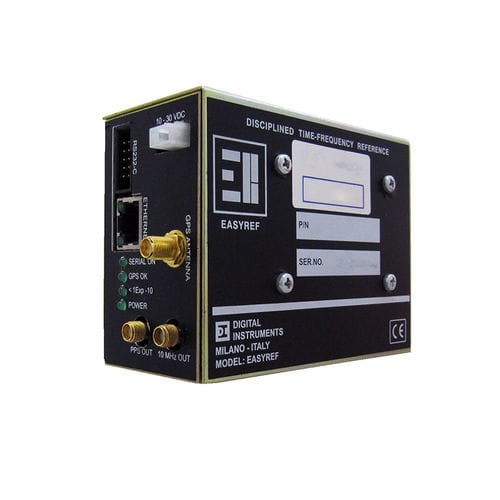

EASYREF is an high stability Time & Frequency genrrator. the high stability is obtained by discipling algorithms controlled by GPS receiver. EASYREF in the standard version, provide 10 MHz frequency reference and 1 PPS time reference as well as Ethernet interface for LAN synchronization by NTP protocol EASYREF is very flexible for all application where high stability Time & Frequency reference are needed in very small size. The unit is extremely compact and cen be mounted on omega DIN rail. EASYREF features: Ethernet interface for synchronization using NTP time protocol and for remote management using SNMP protocol, Internal High Stability OCXO having +/- 1E-10 day aging, Serial connection standard RS232/RS485, DC: 12 Vdc - 48 Vdc, Mechanical format: BALL-EFRATOM type adaptable for DIN mounting.
