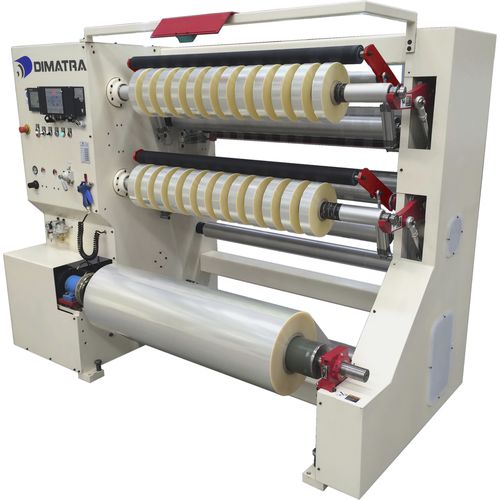

Duplex turret slitter-rewinder Eco Duplex
for plastic filmsfast

duplex turret slitter-rewinder
duplex turret slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
for plastic films
Options
duplex turret
Domain
fast
Working width

38 mm, 1,000 mm, 1,300 mm, 1,600 mm
(1 in, 39 in, 51 in, 63 in)

Speed

4,167 mm/s

Description

Description This machine has been specially designed for those converters who need low production at low price. Excellent performance and easy to operate. Produces excellent quality of slitted rolls. This machine operates with: cellophane, PET, PE, PVC, BOPP, BOPA, laminated products, CPP, adhesives and label. Process - Unwinder with expandable 3” to 6” shafts (optional). - Web guide. - Razor cutting system. - Rewinding system with 3” differential shafts. Optional Trim system, ”F” type support for roll unloading, 6” expandable shafts for the unwinder, web guide for transparent materials and remote connection for fast troubleshooting. Technical Specifications - Unwind diameter: 700 mm (27.5”). - Rewind diameter: 450 mm (17.7”). - Standard widths: 1,000 (39”) – 1,300 (51”) – 1,600 mm (62”). - Minimum slitting width: 38 mm (1.5”). - Speed: 250 m/min (820.21 ft/min). Services - Training. - Installation. - Spare parts sales. - Preventive maintenance. - Troubleshooting hotline.
