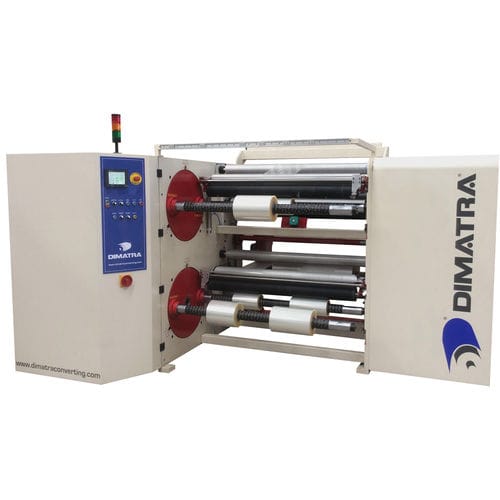

Duplex turret slitter-rewinder
for plastic filmscompactfast

duplex turret slitter-rewinder
duplex turret slitter-rewinder
Add to favorites
Compare this product


Transformed product
for plastic films
compact, duplex turret
Working width

38 mm, 1,000 mm, 1,300 mm, 1,600 mm
(1 in, 39 in, 51 in, 63 in)


8,333 mm/s, 12,500 mm/s


Turret Type Duplex Slitter Rewinder Compact Description Excellent performance compact machine. Easy to operate. Specially designed for those converters who need high production and time optimization. Produces excellent quality of slitted rolls. This machine operates with: cellophane, PET, PE, PVC, BOPP, BOPA, laminations, CPP and label. Process - Shaftless non–pivotable unwinder of 3” and 6” (optional). - Alignment system by register line. - Shear-cut system. - Turret type system with 4 differential shafts of 3”. - Cross cutting system. Optional Shear slitting system, manual or semi-automatic core positioning laser system, rewind roll unloader, turret winding shafts support, differential shafts in different diameters, lifting table system at unwinder to load the roll (patented system) and remote connection for fast troubleshooting. Technical Specifications - Unwind diameter: 1,000 mm (39”). - Rewind diameter: 600 mm(23”). - Standard widths: 1,000 mm (39”) – 1,300 mm (51”) – 1,600 mm (62”). - Minimum slitting width: 38 mm (1.5”). - Speed: 500 m/min (1,640 ft/min) or 750 m/min (2,460 ft/min). Services - Training. - Installation. - Spare parts sales. - Preventive maintenance. - Troubleshooting hotline.
