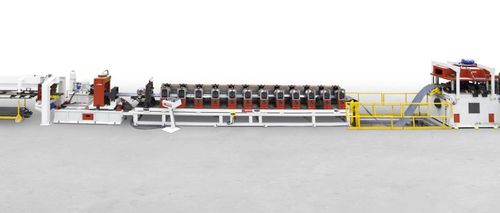

Profile roll forming line

CNCpunchingfor bending

Instead of the typical stamping, DIMECO proposes flexible lines for manufacturing highway protections. Starting from coil, 3 or 4 mm (1 3/16” or 1 9/16”) thick parts can be made, in a single line, achieving roll forming and punching tasks. A flying shear and an automatic stacking system are also included, reaching up to 25 m/min speed production (about 12 t/h). Generally speaking, the lines are adapted to manufacture a 2 or 3-wave guide protection. Line highlights Press electronic feeder Servoflexipress® (120 s/min) Roll forming machine Flying shear Automatic stacking system Approximate dimensions: 50 x 6 m Press feeding line 6.5 t coil charge car 6.5 t decoiler Semi-automatic welding system Straightener Feeder Punching DIMECO Servoflexipress ®. CNC, high speed punching system. Power generated by a servo-motor. The press does not work unloaded. Flexibility to modify the stroking speed. The necessary tools (standard or not) to produce a parts family are installed on the press table. Every tooling is individually driven by one selector. Servo synchronization with electronic feeder. Roll Forming 12-station machine. 3 and 4 mm thickness. 2 or 3-wave guide protection. Flying cut A flying cut is included in the line, in order to obtain the required speed of the line.
