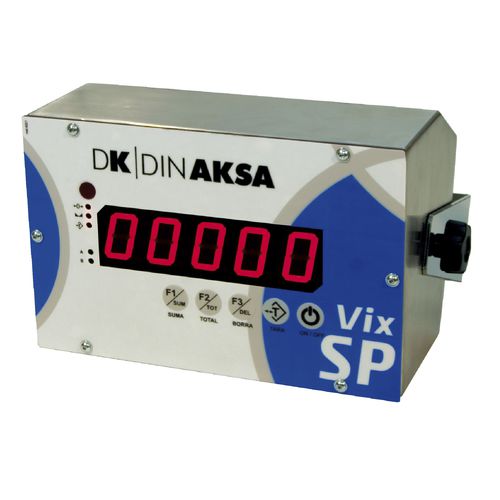

LCD display weight indicator VIX-SP

LED displaywall-mountportable

Desktop viewer mod. VIX-SP for visualization in registration and control centers. With 5 digits LCD or RED NUMBERS, 25 mm high. for industrial applications, overhead cranes, hoists, weighing hooks with radio option, scales and scales. Technical characteristics: * LED display red numbers or LCD with 5 digits of 25 mm. * Baked painted steel housing * Working temperature: from -20 to 70˚C * IP 50 (other IP protection levels, on request) * 5 status indicators (Zero, Stability, Tare, Negative sign, Battery) * Active adder memory by front keyboard * Shield against interference * Power supply 90 / 240Vac * Maximum robustness with minimum weight * Indicator specially designed and manufactured for use in new static and dynamic weighing systems in industrial environments. * Sensor input in mV. National manufacturing with accredited metrological control nº 01M042 Options: * Infrared control for OFF, TARE, summing memory, totalizer and deletions functions * Remote control for OFF, TARE, summing memory, totalizer and deletions * Thermal printer integrated in viewer * Powered by rechargeable battery DK-BAT * Analog input 4-20mA or 0-10V * 4-20mA or 0-10V analog output * PROFIBUS DP type output * Ethernet / Wifi / Radio output * RS232 / RS485 output * Preselection of load (includes remote) * Maximum peak * Calibration certificate (on request) * Stainless steel housing (satin finish) * Ask us about your specific needs
