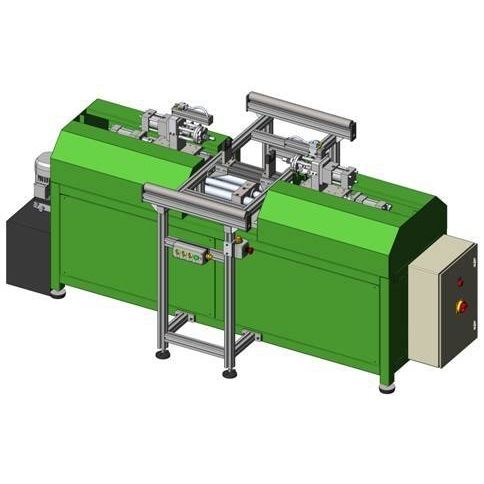

This machine executes the expansion operation of rungs inside the profile of ladders. The width dimension of the ladder to produce can be adjusted automatically to the product.
Features:
-Double expansion head
-Expansion head with automatic lubrication
-Processing of parallel ladders
-Small setup time
Technical data:
-Profile section: 50x20x1.2 up to 80x25x1.5 mm
-Rung type: Square: 25 to 30 x 1.2 mm
Note: All dimensions customizable upon request
-Cycle time: 4 second for rung
-Power: 2.5 kW
-Voltage: 400 V, 3 Phase, 50Hz
-Hydraulic unit (integrated): 120 Bar
- Dimensions: 2665x1250x1250
