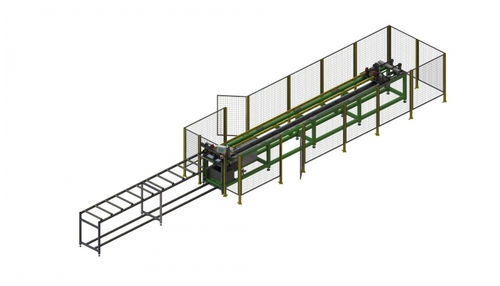

Profile punching machine MCP

automatichydraulicpneumatic

This automatic machine allows to perform simultaneous punching operations on two ladder profiles. After manual feeding of the two profiles, the operator adjusts the required profile size, the machine, Through the servo motor, collects the profiles and places in the punching position, this operation is performed with cycle time of 4 to 5 seconds between Holes (for a pitch of 280 mm). Features: - Fully automatic solution - Punching through inner mandrel - Easy matrix replacement for different hole formats - Prepared to produce two profiles at the same time - Displacement of the profiles controlled by a servomotor - Possibility to adjust the pitch between holes - Protection of danger zones. Technical data: - Profile section (mm): customizable - Profile length: 1500 up to 6000mm - Pitch between holes: Adjustable between 150 and 500mm (more upon request) - Cycle time: 4 to 5 seconds - Power: 1,5 kW - Voltage: 400 V, 3 phase, 50 Hz - Hydraulic pressure: 120 bar - Pneumatic pressure: 6 bar - Dimensions: 12525mm (C) x 2240mm (L) x 1794mm (A)
