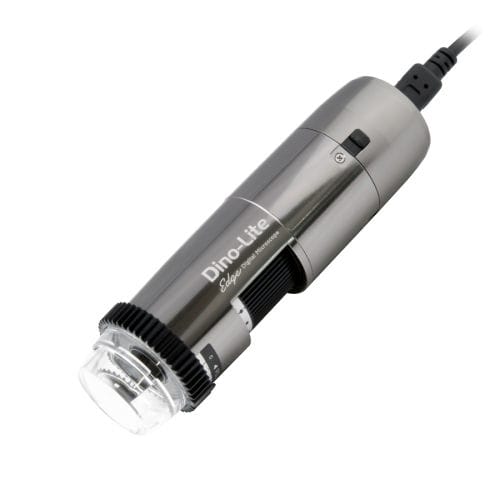

Opto-digital microscope AF7115MZTL

inspectionmeasuringpolarization

AF7115MZTL is a long working distance 5-megapixel digital microscope that delivers high-resolution images at a magnification range of 10x ~ 140x. This model features Flexible LED Control (FLC) for illumination adjustability and a polarizer for removing unwanted reflections. AF7115MZTL is compatible with WF-20 for wireless connectivity. The AF7115MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 – 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required. The extra working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly or for working with bulky or fragile objects that cannot be touched. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AF7115MZTL are: • 5 Megapixel Edge sensor • Long Working Distance (LWD) • 10-140x magnification • Integrated polarizer • Aluminum housing • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps • Wireless Ready • And more...
