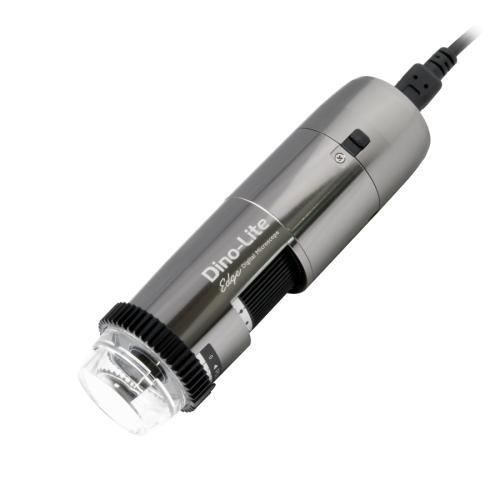

Digital microscope AF7115MZT

measuringinspectionlaboratory

Overview
Dino-Lite AF7115MZT is a 5.0 megapixel digital microscope providing high-resolution imaging with a magnification range of 20x–220x. The model features Flexible LED Control (FLC) for adjustable illumination and an integrated linear polarizer to reduce unwanted reflections. The unit is wireless-ready with the WF-20 Wi‑Fi streamer (optional).

Applications
The AF7115MZT belongs to the Universal series. With a standard working distance and a wide magnification range, it is suitable for a broad range of industrial and laboratory inspections. The built-in polarizer makes it especially useful for examining shiny or reflective materials such as metal, plastic, glass, jewelry and electronic components.

Key features

• 5.0 Megapixel Edge CMOS sensor (2592 x 1944)
• Magnification: 20x–220x (wide range)
• Integrated linear polarizer (reflection reduction)
• Aluminum / metal housing
• Flexible LED Control (FLC) with 8 white LEDs
• Measurement functions and calibration
• Interchangeable front caps (includes diffuser N3C‑D)
• Wireless-ready (compatible with WF-20)
• Microtouch sensor, ESD safe

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE 1 | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 142.6 | 39.6 | 29.7 | 26.0
20 | 60.1 | 19.8 | 14.8 | 7.0
30 | 33.6 | 13.2 | 9.9 | 3.3
40 | 21.0 | 9.9 | 7.4 | 2.0
50 | 14.0 | 7.9 | 5.9 | 1.4
60 | 9.8 | 6.6 | 4.9 | 1.0
70 | 7.3 | 5.7 | 4.2 | 0.8
80 | 5.7 | 4.9 | 3.7 | 0.6
90 | 4.8 | 4.4 | 3.3 | 0.5
100 | 4.3 | 4.0 | 3.0 | 0.4
110 | 4.2 | 3.6 | 2.7 | 0.4
120 | 4.3 | 3.3 | 2.5 | 0.3
130 | 4.7 | 3.0 | 2.3 | 0.3
140 | 5.2 | 2.8 | 2.1 | 0.3
150 | 5.8 | 2.6 | 2.0 | 0.3
160 | 6.5 | 2.5 | 1.9 | 0.2
170 | 7.3 | 2.3 | 1.8 | 0.2
180 | 8.1 | 2.2 | 1.6 | 0.2
190 | 9.1 | 2.1 | 1.6 | 0.2
200 | 10.0 | 2.0 | 1.5 | 0.2
210 | 11.0 | 1.9 | 1.4 | 0.2
220 | 12.1 | 1.8 | 1.3 | 0.2

Table notes
Listed values may differ slightly. * Without front cap. Unit = mm.

Specifications

• Lighting: White LEDs; 8 LEDs; LED on/off switchable; IR cut-filter >650 nm; diffuser included (N3C‑D); no emission filter; integrated linear polarizer.
• Optics: Magnification 20x–220x; no macro zoom; standard working distance; glass lens with anti-reflection coating.
• Sensor: CMOS; resolution 5.0 Megapixel (2592 x 1944); maximum frame rate 30 fps.
• Compatibility: USB 2.0; Windows 7, 8, 10 & 11; MacOS 10.9 and up; software DinoCapture 2.0 (Windows), DinoXcope (Mac); supported image/video formats; DirectShow, UVC; wireless-ready (requires WF-20).
• Housing: Metal housing; dimensions 11.5 cm (L) x 3.4 cm (D); weight 97 g; cable length 1.8 m.
• Features: Flexible LED Control (FLC); measurement functions; calibration; Microtouch sensor; ESD safe.
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C‑O (open cap), N3C‑C (closed cap), N3C‑D (diffuser cap), N3C‑extension cap, N3C‑L (long cap), N3C‑S (side light cap).
• Warranty & compliance: 2 years European warranty; CE, FCC, ROHS.
• Indicative price range: €900.00 - €1100.00.
