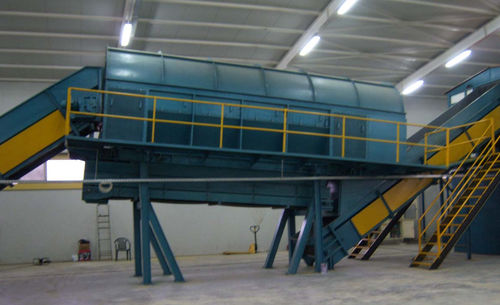

Sieve DTS series

Trommel screens are the machines which separates the waste according to predetermined sizes. This process occurs with help of the drum inside of the trommel screen which has holes with certain diameter. Availability of changing sheet metals of the drum allows the machine to sort wastes in different dimensions. We manufacture trommel screen according to required capacity and demands. MOTOR - kW - 11+11 - 15 + 15 - 18,5 + 18,5 ROTARY SCREEN LENGTH - m - 6 - 12 TOTAL LENGTH - m - 7,5 - 13,5 ROTARY SCREEN DIAMETER - mm - Ø 2000 - Ø 2500 SCREEN SIZE HOLE - mm - Ø 20 – Ø 350 CAPACITY - t/h - 7,0 – 10,0 - 15,0 – 20,0 - 25,0 – 45,0 ROTATION SPEED - dev/dk-rpm - 0,0 – 14,0 ROTATION SPEED - dev/dk-rpm - 10,0 – 12,0
